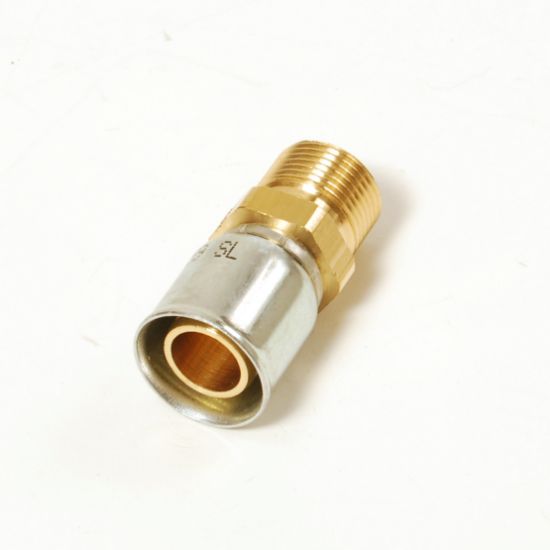

Parker 16191N-12-12 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 16191N-12-12 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 16191N-12-12
Price: 92.26 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

10 In Stock

Jacksonville, FL	4
North Chesterfield, VA	2
Mooresville, NC	2
Ashland, VA	1 (Pickup only)
Johnson City, TN	1 (Pickup only)

Partner Available:

65 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 16191N-12-12

$92.26/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Hex Size	n/a	Connection 2 Type	Male
Coating	Chromium 6 Free-plated	Connection 1 Size	15.9 mm
Connection Length	1-3/16 inch Cut-off allowance (see drawing legend B)	Body Material	Brass (Nipple)
Division	Parflex Division	Application	Tools & Equipment
Product Type	Hose Fittings	Shape	Straight
Hex Size 1	1-1/8 inch (see drawing legend H)	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Specifications Met	n/a
Industry	Food & Beverage	Maximum Operating Pressure	3000 psi (Dependent on hose)
Brand	Parker	Product Series	91N
Fitting Length	1.97 inch (see drawing legend A)	Configuration	Hose to Port
Division	Parflex Division	Dimensional Weight	0.0548 lb
For Fluid Type	Water	Connection 2 Size	1"-18 inch Thread
Hose I.D. (inch)	0.625"	Length (inch)	1.97"
Product Style	Compression Air Brake	Connection 2 Size	1"-18
