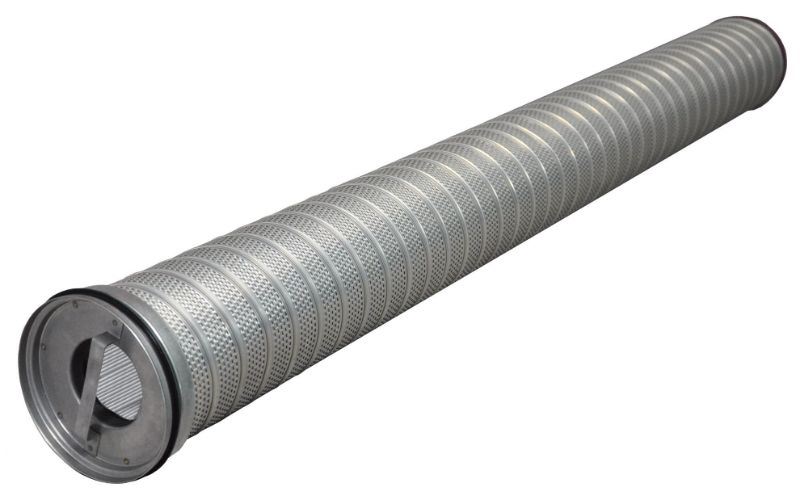

Parker 16012 - XTREAMPURE® XP Liquid Filter Cartridge

XtreamPure® Series XP high flow rate filter cartridge for contaminant removal used in a variety of liquid filtration applications. Several styles to handle any temperature, compatibility & cleanliness.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16012

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Technology	Filtration	Industry	Oil and Gas
Flow Direction	Inside-to-Outside	Changeout Pressure Differential	35 psid
Quantity per Box	1	Nominal Inside Diameter	3 inch
Maximum Pressure Differential	50	Nominal Outside Diameter	6.3 inch
pH Range	3-9	Micron Rating	5
Maximum Operating Temperature	350 F	Maximum Pressure Differential	50 psid
Core Material	N/A	Seal Material	Viton
End Cap Material	304SS	Nominal Inside Diameter	3"
End Cap Configuration	SOE - Open top w/ handle outer chevron-style seal, closed bottom	Nominal Outside Diameter	6.3"
Flow Direction	Inside-to-Outside	Filter Construction	Pleated
Changeout Pressure Differential	35 PSID	Cartridge Length	40.5"
Body Material	304SS	Filter Material	Glass with Epoxy
Product Series	XP-GHT1	Model Number	ELMT XP-GHT1-4050V
