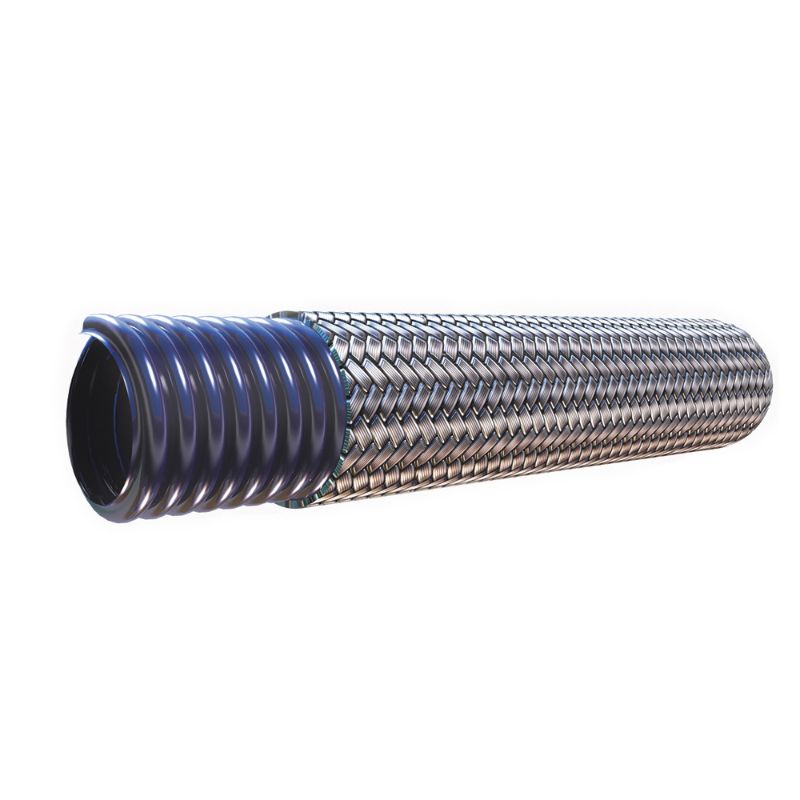

Picture of Parker 16-SCB - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 16-SCB - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 16-SCB
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
MediaAirDivisionParflex Division
ApplicationFluid HandlingCover Materialn/a
Compatible FittingPAGE SeriesSpecifications MetUSP Class VI (compliant core tube)
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeHose Reinforcement MaterialBraid of 304 Stainless Steel
Design Factor4:1Vacuum Pressure Rating28
Maximum Operating Temperature500Minimum Operating Temperature-100
Inside Diameter1Maximum Operating Pressure1000
Size-16Minimum Bend Radius2-1/2
Weight0.37Outside Diameter1.340
Hose StyleStatic DissipativeHose I.D. (inch)1
