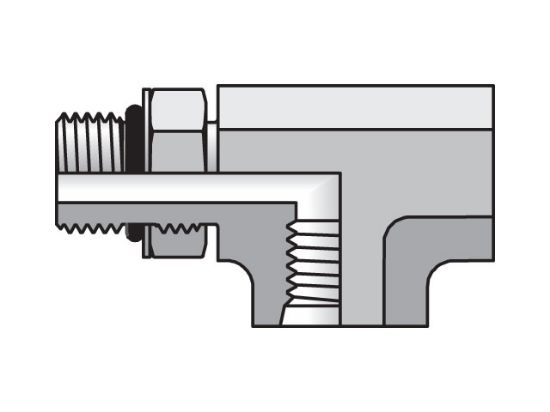

Parker 16 AOG5JG5-S V0894 - Pipe & Port Tee AOG5JG5

Straight Thread Run Tee SAE-ORB (all three ends)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16 AOG5JG5-S V0894

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
End 3	1 5/16-12 UN/UNF-2B	End 2	1 5/16-12 UN/UNF-2B
Material	Steel	Pkg Qty	20
UOM	EA	Pkg Qty/UOM	20 EA
O-Ring/Seal Material	Fluorocarbon	End 1	1 5/16-12 UN/UNF-2A
Inch/Metric	Inch	Series	Pipe & Port
End 2	1 5/16-12 UN/UNF-2B	Material	Steel
O-Ring/Seal Material	Fluorocarbon	Parker Division	Tube Fitting
End 1 Type	UN/UNF-2A	End 1	1 5/16-12 UN/UNF-2A
Parker Group	Fluid Connector	Tube Fitting/Adapter Type	Pipe & Port
Configuration Sub-Type	Straight Thread Run Tee SAE-ORB (all three ends)	End 3 Type	UN/UNF-2B
End 3	1 5/16-12 UN/UNF-2B	End 2 Type	UN/UNF-2B
Configuration Type	Tee

Product resources

Pipe Fittings and Adapters (PDF)
