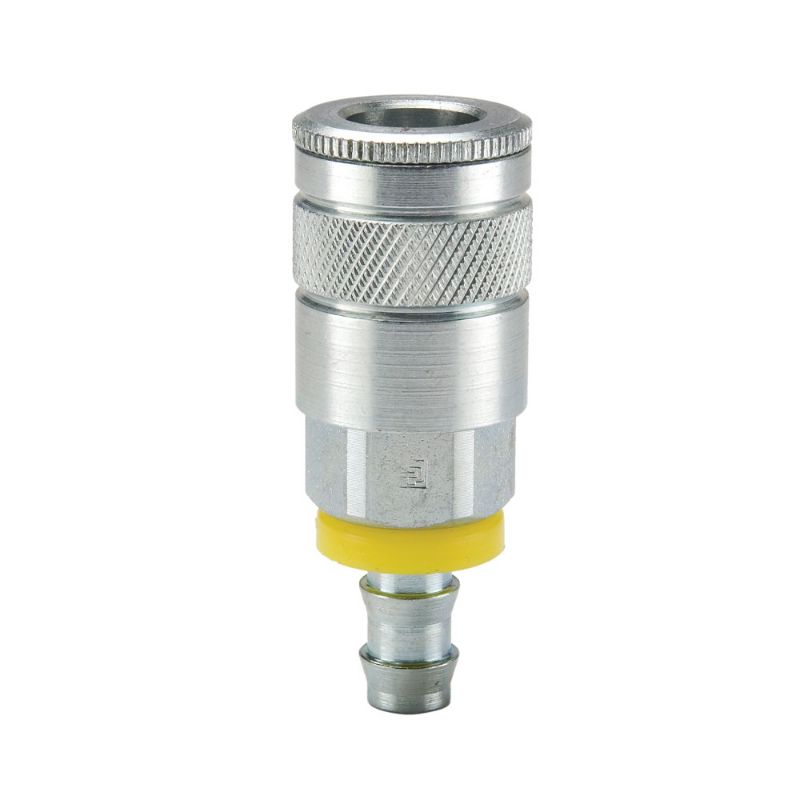

Parker 16-6BP - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	152 In Stock

Brand Parker

Part No. 16-6BP

$38.16/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Sleeve Type	Manual	Division	Quick Coupling Division
Media	Low pressure fluids and compressed air	Lock Type	Locking balls
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Application	Air	Minimum Operating Temperature	-40 °F
Specifications Met	Tru-Flate design	Seal Material	Nitrile
Coupling Half	Coupler	Maximum Operating Pressure	300 psi
Valve Type	Tubular	Body Material	Steel
Body Size (inch)	1/2	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Thread Style	na
Connection Hose I.D. (inch)	1/2
