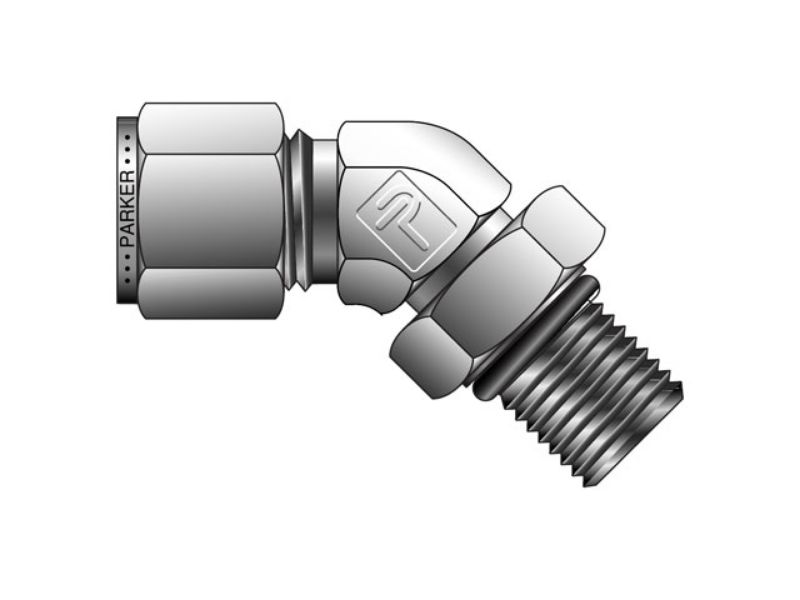

Parker 16-16 V5BZ-S - CPI Inch Tube 45° Male Elbow SAE/MS Straight Thread - V5BZ

Instrumentation Tube Fitting - 45° Elbow 45° Male Elbow SAE/MS Straight Thread for use with Inch Tubing

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16-16 V5BZ-S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Material	Steel	UOM	EA
End 1	1 Inch	Pkg Qty	1
End 2	1 Inch	End 3	1 5/16-12 SAE
Parker Group	Fluid Connector	Material	Steel
Inch/Metric	Inch	End 1	1 Inch
End 1 Type	Inch	Parker Division	Instrumentation Products
Configuration Type	45° Elbow	Series	CPI
Tube Fitting/Adapter Type	Bite Type, CPI Single Ferrule Flareless	End 2 Type	Inch
Trade Name	CPI/A-LOK	Ferrule Type	Single
End 3 Type	SAE	End 2	1 Inch
Configuration Sub-Type	Male 45° Elbow - Flareless / SAE	End 3	1 5/16-12 SAE

Product resources

Instrumentation Fittings (PDF)
