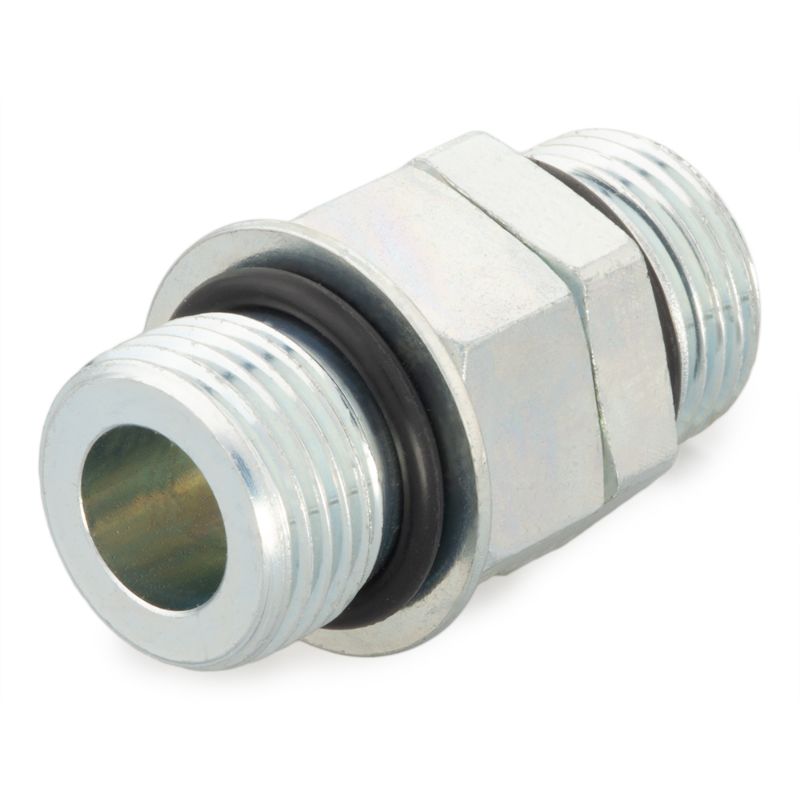

Picture of Parker 16-12 F5OHAO-S - Pipe Fittings and Port Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 16-12 F5OHAO-S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 16-12 F5OHAO-S
$36.82
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Connection 4 SizenaConnection 4 Thread Sizena
Maximum Dynamic Pressure4000 psiFitting TypePort Adapter
Body MaterialSteelShapeStraight
Length (inch)naBody MaterialSteel
Connection 3 StylenaConnection 1 Thread Size (mm)na
Connection 2 Thread Size (mm)naConnection 3 Thread Size (inch)na
O-Ring Material90 Durometer NitrileConnection 1 StyleMale SAE-ORB
Connection 1 Thread Size (inch)1 5/16-12Connection 2 Thread Size (inch)1 1/16-12
Connection StyleSAE-ORB to SAE-ORBConnection 2 StyleMale SAE-ORB
