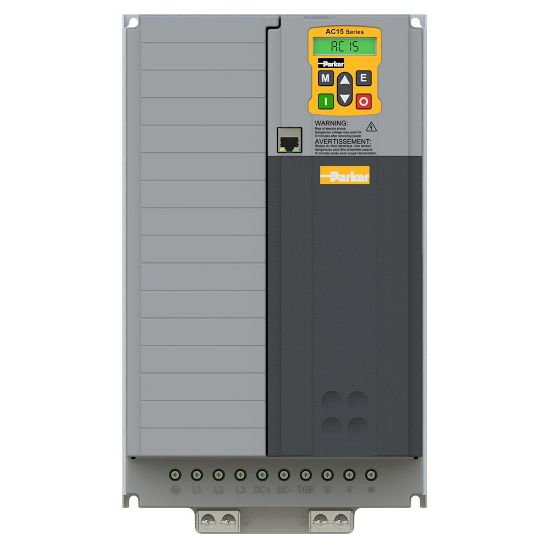

Parker 15G-35-0300-BF - AC Variable Frequency Drives, HP Rated - AC15 Series

The AC15 compact drive provides Ethernet connectivity and Safe Torque Off in a low cost, compact drive for simple open loop AC induction and Permanent Magnet motor control in applications up to 40HP/30kW

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 15G-35-0300-BF

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Brand	Parker
Drive Axis Type	Single Axis Technology	Operating Altitude	up to 1000 m ASL (derate > 1000m)
Product Type	AC Drive	Output Power	7.5 kW
Input Voltage	3*230 VAC	Product Series	AC15
Overload Rating	150 % for 60s	Modes of Control	Sensorless Vector
Specifications Met	cUL Listed	Compatible Motor Type	Permanent Magnet AC (PMAC)
Operating Temperature	0 to 40 °C (derate up to 45°C max)	Output Current Rating	30 A
Communication Interface	Ethernet TCP/IP	Input Voltage	3*230VAC
Output Current Rating	30 A
