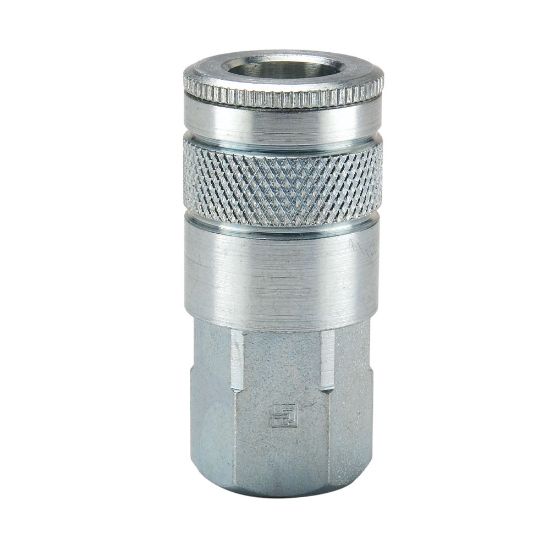

Parker 15F - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	43 In Stock

Brand Parker

Part No. 15F

$40.74/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	1.0 inch
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Application	Pneumatic	Minimum Operating Temperature	-40 °F
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Interchange Type	Tru-Flate design	Valve Type	Tubular
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Body Material	Steel	Body Size (inch)	3/8
Hose I.D. (inch)	na	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/2 - 14	Connection Type	Female NPTF
