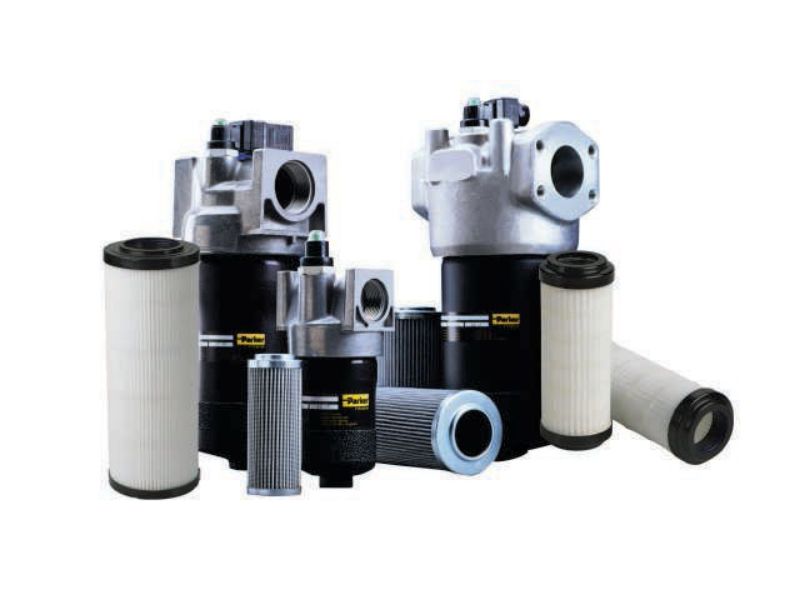

Parker 15CN202QEVE2GS164 - 15CN Series Medium Pressure Filter

15CN Series Hydraulic and Lube Oil Medium Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 15CN202QEVE2GS164

$441.30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Bypass	25 PSI (1.7 bar)
Nominal Filter Rating	2 micron	Indicator Type	Electrical/Visual (DIN-43650 Connection)
Max Pressure - Non-Fatigue MAOP	1000 psi (69 bar)	Options	SAE-4 drain port on bowl
Max Pressure - Fatigue MAOP	800 psi (55.2 bar)	Operating Temperature	-15F to 250F (-26C to 121C)
Seals	Fluorocarbon	Element Length	Double
Nominal Flow Rating	15 GPM (57 LPM)	Replacement Element	936702Q
Port	16 SAE	Parker Group	Filtration
Parker Division	Hydraulic Filter	Port Type	SAE
Bypass	25 PSI (1.7 bar)	Series	15CN
Filter Media Code	02QE	Filter Type	Medium Pressure Filter
Nominal Filter Micron Rating	2 micron	Filter Media Type	Ecoglass III
Indicator Type	Electrical/Visual (DIN-43650 Connection)	Max Pressure - Non-Fatigue MAOP	1000 PSI (69 bar)
Options	SAE-4 drain port on bowl	Max Pressure - Fatigue MAOP	800 PSI (55.2 bar)
Operating Temperature	-15F to 250F (-26C to 121C)	Seals	Fluorocarbon
Element Length	Double	Nominal Flow Rating	15 GPM (57 LPM)
Port	16 SAE

Product resources

CN Series (PDF)
