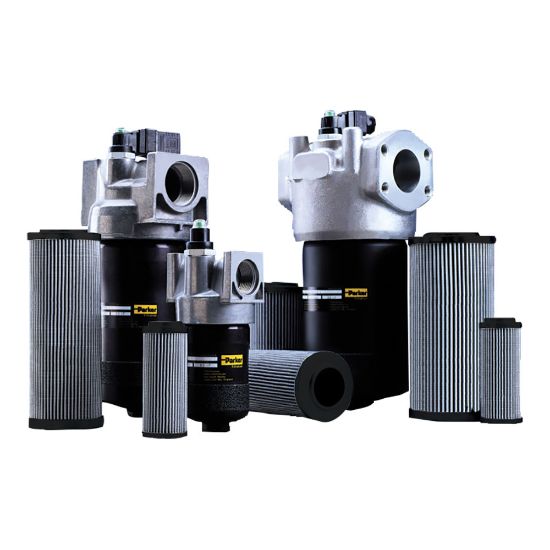

Parker 15CN-0016 - Medium Pressure Inline Filters CN Series

The CN Series is a compact, cost effective, medium pressure filter designed with coreless filtration technology. CN Series bowl features a permanently fixed core designed to reduce solid waste and minimize disposal costs with every element change out.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 15CN-0016

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Micron Rating	5 µm	Filter Element Type	05Q Microglass
Options	No bypass	Flow Rate	75 l/min (20 gal/min)
Indicator Type	Electrical/Visual with 1/2"-14 NPT conduit connection and wire leads	Specifications Met	CE marked indicator
Port Connection Type	G1"	Indicator Pressure Setting	2.5 bar
Bypass Valve Pressure Rating	3.5 bar (50 psi)

Product resources

Literature and Reference Materials
