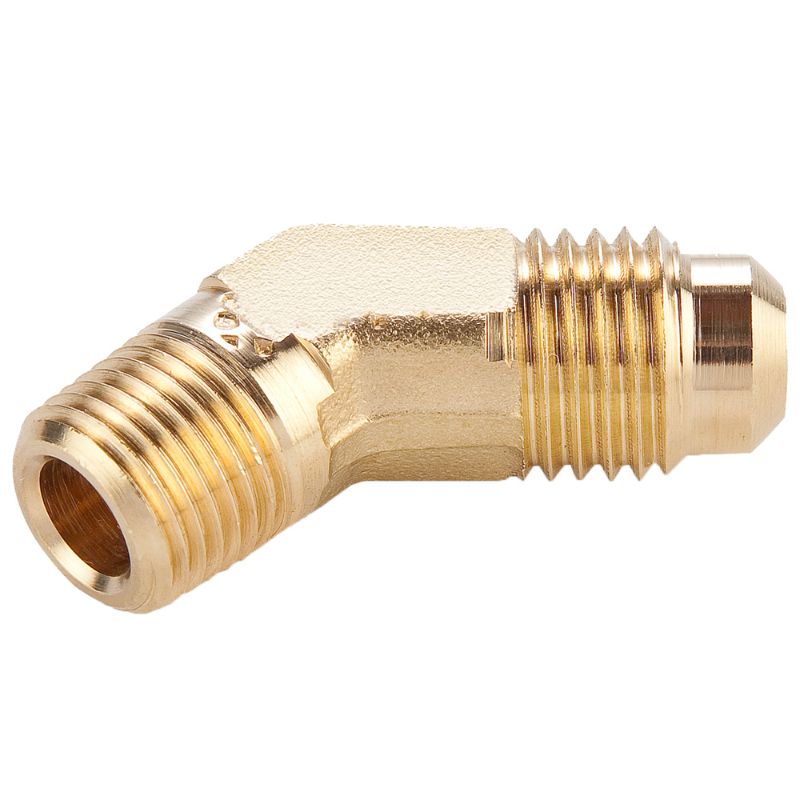

Parker 159F-4-2 - Brass 45° Flare Fittings

Name: Parker 159F-4-2 - Brass 45° Flare Fittings
SKU: 159F-4-2
Price: 7.01 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:

8 In Stock

West Knoxville, TN	5
Norfolk, VA	3

Partner Available:

181 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 159F-4-2

$7.01/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Nut Material	Brass	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Body Material	Brass	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Minimum Operating Temperature	-65 °F	Division	Fluid System Connectors Division
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Specifications Met	SAE J512, SAE J513
Maximum Operating Pressure	1,400 psi	Brand	Parker
Division	Fluid System Connectors Division	Dimensional Weight	0.27594424460431655 lb
Connection 2 Type	Male Pipe	Connection 1 Type	Flare
Connection 1 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Product Style	Flare to Pipe	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Thread Size	1/8 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Shape	45° Forged Elbow
