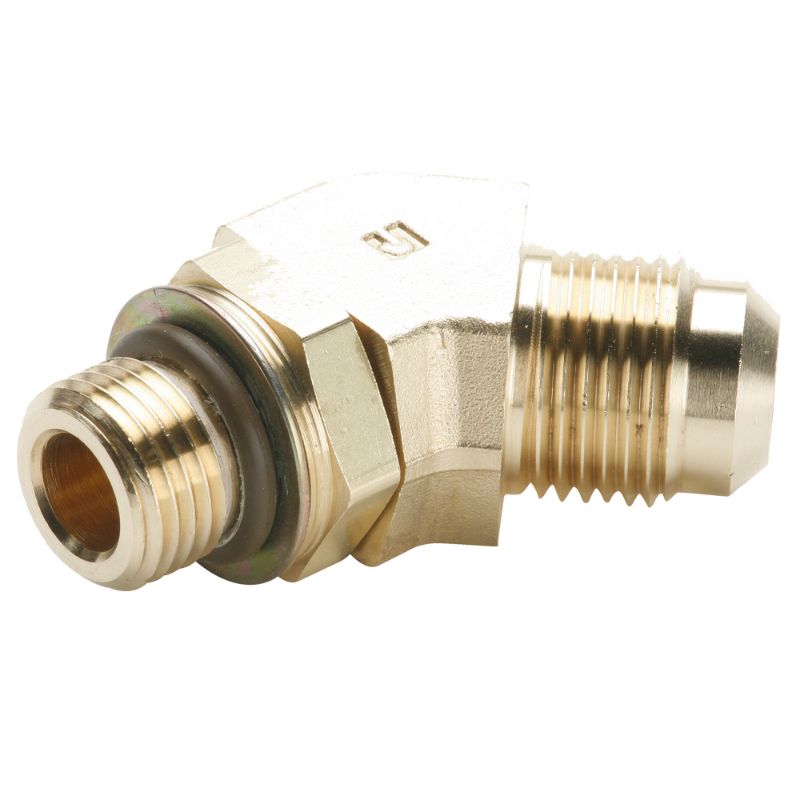

Parker 1595F-12-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. 1595F-12-8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Minimum Operating Temperature	-65 °F	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	37.9 bar	Connection 1 Type	Flare
Connection 3 Tube Outside Diameter	NA	Connection 2 Type	SAE Straight Thread
Connection 3 Type	NA	Connection 1 Thread Size	1-1/16-14 inch
Connection 2 Thread Size	1/2 inch	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	NA
Shape	45° Forged Elbow	Product Style	Flare to Straight Thread
