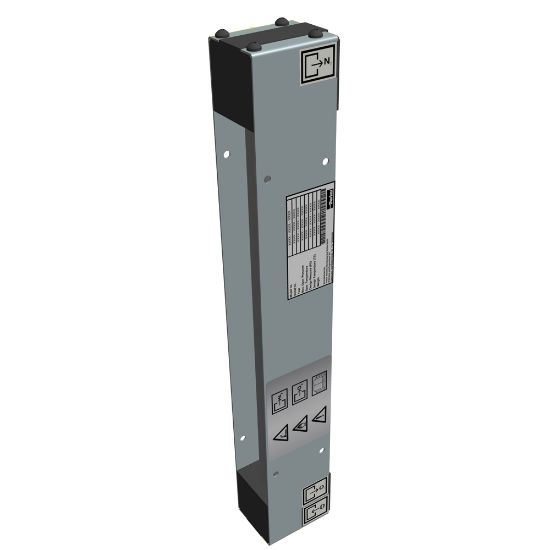

Picture of Parker 159.005534 - HiFluxx Nitrogen Gas Membrane Modules (5% to 0.5% maximum remaining oxygen content)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 159.005534 - HiFluxx Nitrogen Gas Membrane Modules (5% to 0.5% maximum remaining oxygen content)

Membrane modules for producing nitrogen gas at pressures up to 13 barg from a standard compressed air supply. HiFluxx provides nitrogen gas of 95% to 99,5% equivalent nitrogen purity.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 159.005534
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Product TypeMembrane Gas SeparationPort TypeFemale BSPP
Inlet Port SizeG 3/8Outlet Port SizeG 3/8
Inlet Pressure Rating145Electrical RequirementsNo
Maximum Air Inlet Temperature50 °CInlet Air Quality SpecificationsISO 8573-1:2010 Class 1.4.1
Width80 mmIndustryAviation
Gas PurityLowApplicationIndustrial
Oxygen Content1 to 5 %Number of Tubes1
Gas Type GeneratedNitrogenHousing MaterialSteel
Diametern/aProduct SeriesHIFLUXX
Length63 mmWeight5.72 lb
Flow Rate1.0Model NumberHiFluxx ST504
Depth63 mmOxygen Content1 to 5%
Model NumberHiFluxx ST504Flow Rate1 m³/h @ 7 barg / 97% Purity
Product resources

Literature and Reference Materials
