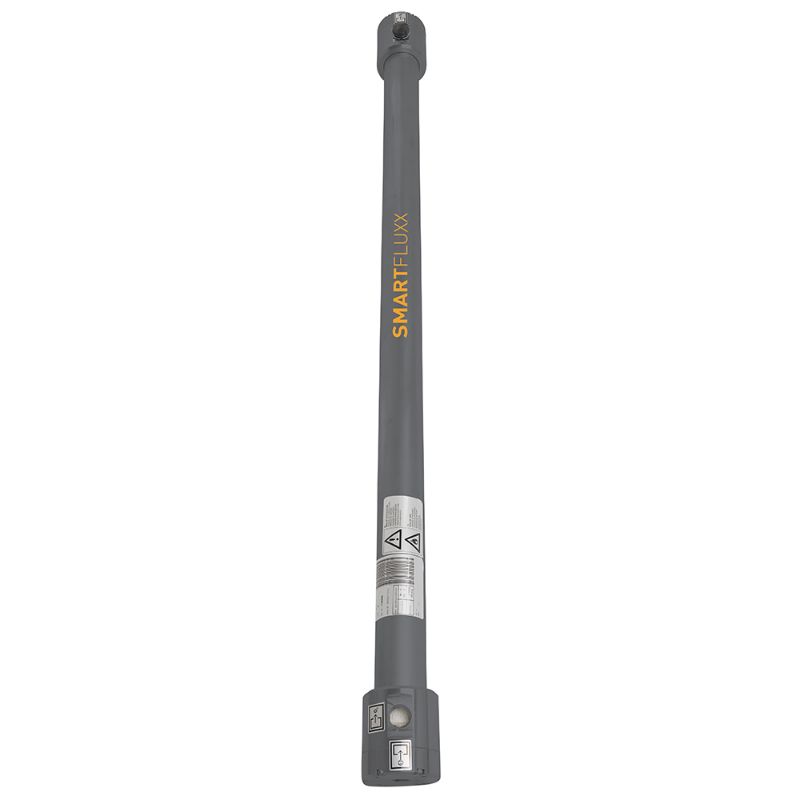

Picture of Parker 159.005246 - SmartFluxx Nitrogen Gas Membrane Modules (10% to 0.5% maximum remaining oxygen content)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 159.005246 - SmartFluxx Nitrogen Gas Membrane Modules (10% to 0.5% maximum remaining oxygen content)

SmartFluxx design optimizes highest nitrogen capacity and lowest feed-air consumption, keeping the modules the smallest available on the market. SmartFluxx provides nitrogen gas of 90% to 99,5% equivalent nitrogen purity.
AFP Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 159.005246
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Housing MaterialAluminumProduct TypeMembrane Gas Separation
Port TypeFemale BSPPInlet Port SizeG 3/4
Outlet Port SizeG 1Electrical RequirementsNo
Maximum Air Inlet Temperature122 °FInlet Air Quality SpecificationsISO 8573-1:2010 Class 1.4.1
Length1655 mmWeight15 lb
Diameter4.5 inchIndustryAviation
Flow Rate16.5Gas PurityLow
ApplicationHeat TreatmentModel NumberSmartFluxx SA1508
Oxygen Content0.5 to 5 %Product SeriesSMARTFLUXX
Number of Tubes1Gas Type GeneratedNitrogen
Inlet Pressure Rating190Flow Rate16.5 m³/h @ 7 barg / 97% Purity
Model NumberSmartFluxx SA1508Oxygen Content0.5 to 5%
