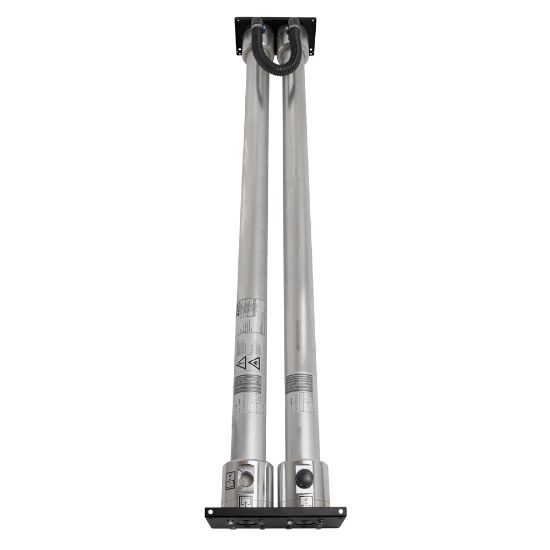

Picture of Parker 159.003226 - HiFluxx Nitrogen Gas Membrane Modules (5% to 0.5% maximum remaining oxygen content)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 159.003226 - HiFluxx Nitrogen Gas Membrane Modules (5% to 0.5% maximum remaining oxygen content)

Membrane modules for producing nitrogen gas at pressures up to 13 barg from a standard compressed air supply. HiFluxx provides nitrogen gas of 95% to 99,5% equivalent nitrogen purity.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 159.003226
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Housing MaterialAluminumProduct TypeMembrane Gas Separation
Port TypeFemale BSPPInlet Port SizeG 3/4
Electrical RequirementsNoMaximum Air Inlet Temperature122 °F
Inlet Air Quality SpecificationsISO 8573-1:2010 Class 1.4.1IndustryAviation
Gas PurityLowApplicationIndustrial
Oxygen Content0.5 to 5 %Outlet Port SizeG 3/4
Gas Type GeneratedNitrogenNumber of Tubes2
Weight33 lbProduct SeriesHIFLUXX
Length8.2 inchDiametern/a inch
Flow Rate19.5Model NumberHiFluxx DT1506-8
Inlet Pressure Rating116Depth208 mm
Width296 mmOxygen Content0.5 to 5%
Model NumberHiFluxx DT1506-8 (4-8 barg)Flow Rate19.5 m³/h @ 7 barg / 97% Purity
Product resources

Literature and Reference Materials
