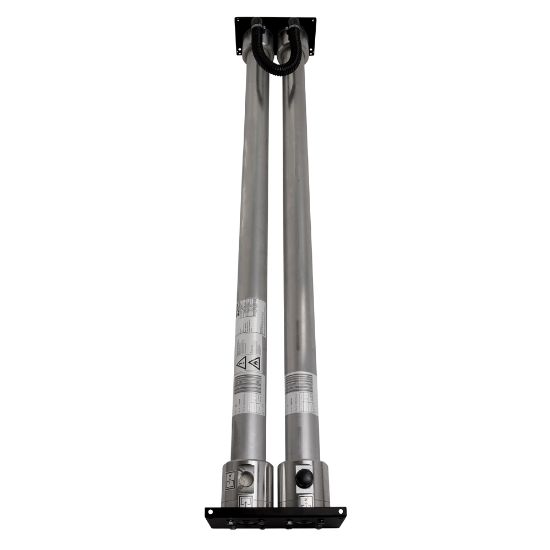

Picture of Parker 159.003115 - HiFluxx Nitrogen Gas Membrane Modules (5% to 0.5% maximum remaining oxygen content)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 159.003115 - HiFluxx Nitrogen Gas Membrane Modules (5% to 0.5% maximum remaining oxygen content)

Membrane modules for producing nitrogen gas at pressures up to 13 barg from a standard compressed air supply. HiFluxx provides nitrogen gas of 95% to 99,5% equivalent nitrogen purity.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 159.003115
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerIndustryOil & Gas
TechnologyFiltrationDivisionGas Separation and Filtration Division EMEA
DivisionGas Separation and Filtration Division EMEAHousing MaterialStainless Steel
Product TypeMembrane Gas SeparationPort TypeFemale BSPP
Inlet Port SizeG 3/4Inlet Pressure Rating188.5
Electrical RequirementsNoMaximum Air Inlet Temperature50 °C
Inlet Air Quality SpecificationsISO 8573-1:2010 Class 1.4.1Gas PurityLow
ApplicationHeat TreatmentOxygen Content0.5 to 5 %
Outlet Port SizeG 3/4Gas Type GeneratedNitrogen
Number of Tubes2Weight39 kg
Product SeriesHIFLUXXLength1734 mm
Flow Rate26.0Model NumberHiFluxx DT1508SS
Depth145 mmWidth11.6 inch
Oxygen Content0.5 to 5%Model NumberHiFluxx DT1508SS
Flow Rate26.0 m³/h @ 7 barg / 97% Purity
Product resources

Literature and Reference Materials
