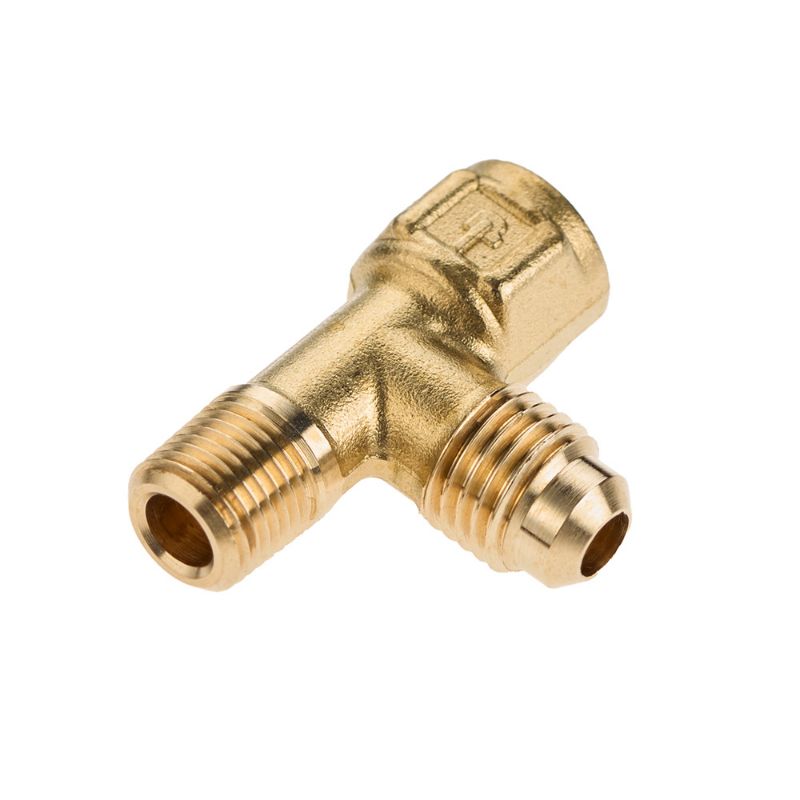

Parker 156F-4-2 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 156F-4-2

$11.47

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Temperature	250	Minimum Operating Temperature	-65
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Maximum Operating Pressure	1,400	Connection 1 Type	Male Pipe
Connection 2 Type	Female Pipe	Connection 3 Type	Flare
Connection 3 Tube Outside Diameter	1/4 inch	Product Style	Flare to Pipe
Connection 1 Tube Outside Diameter	1/8 inch	Connection 2 Tube Outside Diameter	1/8 inch
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Shape	Adapter Tee	Connection 1 Thread Size	NA

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
