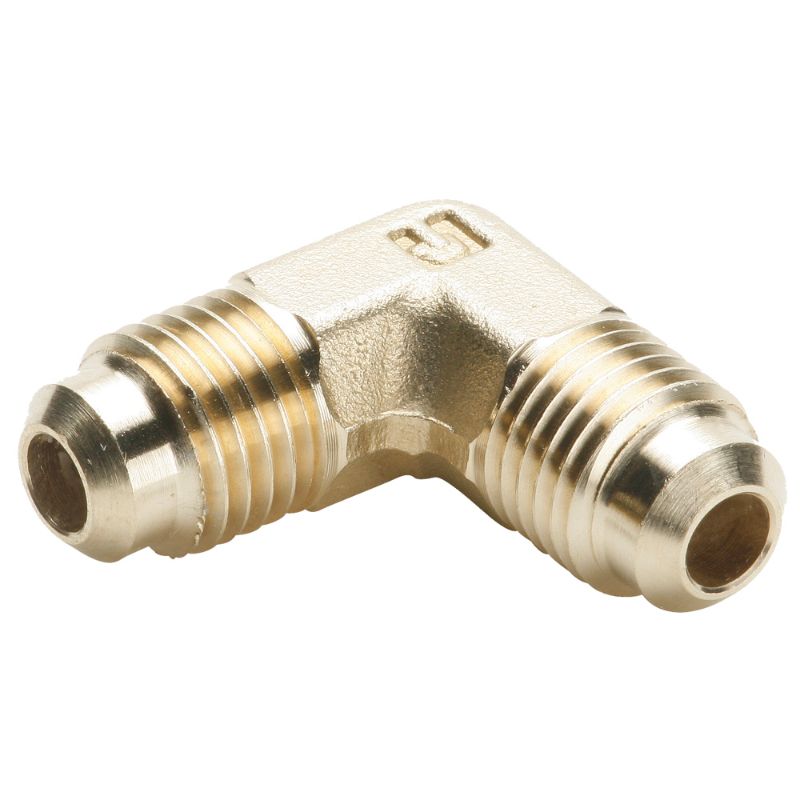

Parker 155F-4 - Brass 45° Flare Fittings

Name: Parker 155F-4 - Brass 45° Flare Fittings
SKU: 155F-4
Price: 8.00 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

9 In Stock

Norfolk, VA	5
Knoxville, TN	4

Partner Available:

107 In Stock

Brand Parker

Part No. 155F-4

$8.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Minimum Operating Temperature	-65 °F	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Dimensional Weight	0.27594424460431655 lb	Specifications Met	SAE J512, SAE J513
Maximum Operating Pressure	2800 psi	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Product Style	Flare to Flare	Connection 1 Type	Flare
Connection 2 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 2 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 2 Tube Outside Diameter	1/4 inch	Connection 3 Tube Outside Diameter	NA
Shape	90° Forged Elbow	Connection 3 Type	NA
Connection 3 Thread Size	NA
