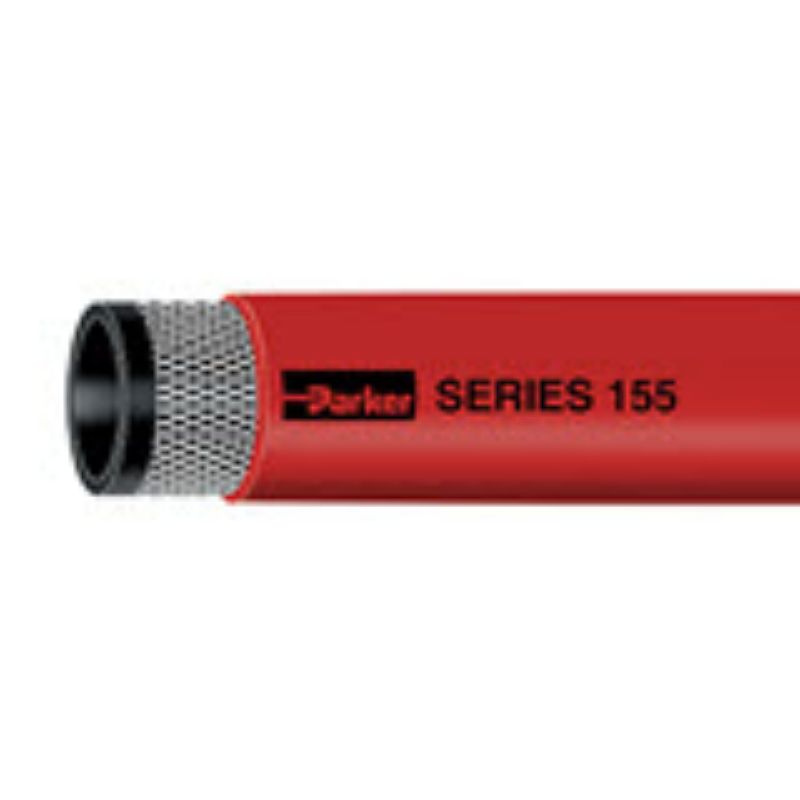

Parker 155-06004501 - NEXTRILE Premium PVC General Purpose Hose, Series 155

Nextrile PVC low temperature, nonconductive, general purpose hose is designed for transfer of air, diluted chemicals and water in applications from -22°F to 150°F and 300 psi, Series 155

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 155-06004501

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Inside Diameter	3/8	Weight	0.14
Maximum Operating Pressure	300	Maximum Operating Temperature	150
Length per Package	500	Application	PVC Hose
Cover Material	PVC	Cover Structure	Smooth
Minimum Bend Radius	n/a	Hose Reinforcement Material	2 Plies of Textile
Package Type	Reel	Outside Diameter	0.630
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Minimum Operating Temperature	-22	Hose I.D. (inch)	3/8
Color	Red

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
