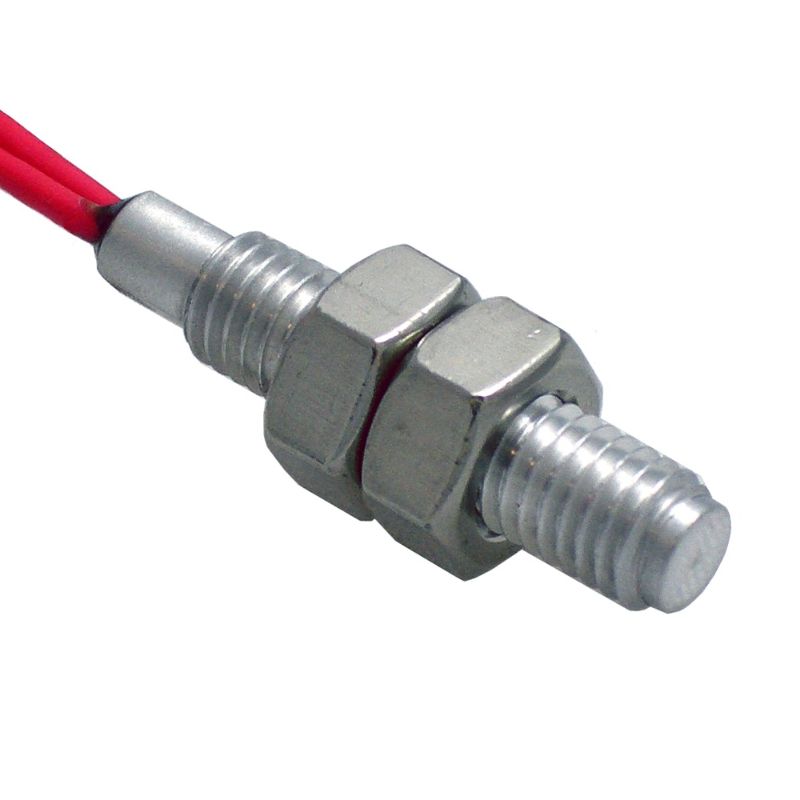

Parker 154482ECD - Proximity Sensor - PS

Parker's Proximity Sensors use non-contacting technology to detect the presence of a magnet target. Designed using reed switch technology and potted electronics, they are very robust and well suited for applications where large air gaps are required.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 154482ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Sensor Type	Proximity
Ingress Protection Rating	67	Housing Material	Aluminum
Minimum Operating Temperature	-40 °C	Industry	Material Handling
Electrical Connection	DTM	Maximum Operating Temperature	105 °C
Model Number	PS65	Mounting Type	M8-1.25 Thread
Contact Rating	5 W	Maximum Switching Current	0.3 A
Maximum Switching Voltage	100 VDC	Switch Type	Normally Closed Switch
