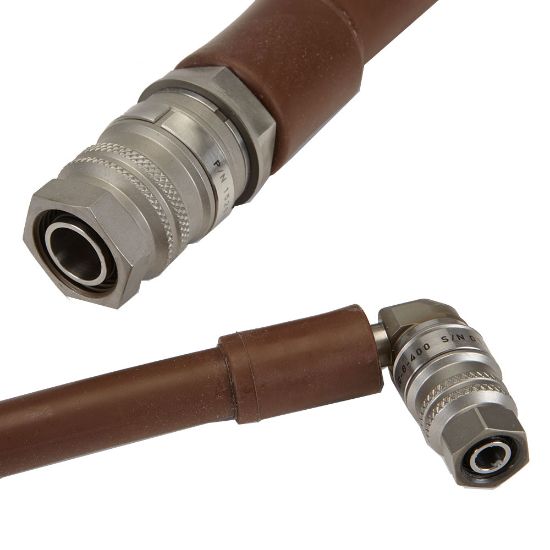

Parker 152008-1-08E - Single Shut-off Couplings

Lightweight and highly-reliable connection providing self-sealing capability on one side of the connection when the single shut-off coupling is disconnected from the mating fitting.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 152008-1-08E

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Stainless Steel	Weight	0.33
Maximum Fluid Temperature	250	Division	Stratoflex Products Division
Length	2.03	Burst Pressure	7,500 psig
For Fluid Type	Skydrol	Proof Pressure	4,500 psig
Minimum Fluid Temperature	-65	Flow Rate (gpm)	6
Diameter (inch)	1.16	Line Size - Inlet	1/2 inch (-08)
Maximum Operating Pressure (psig)	3,000 psig
