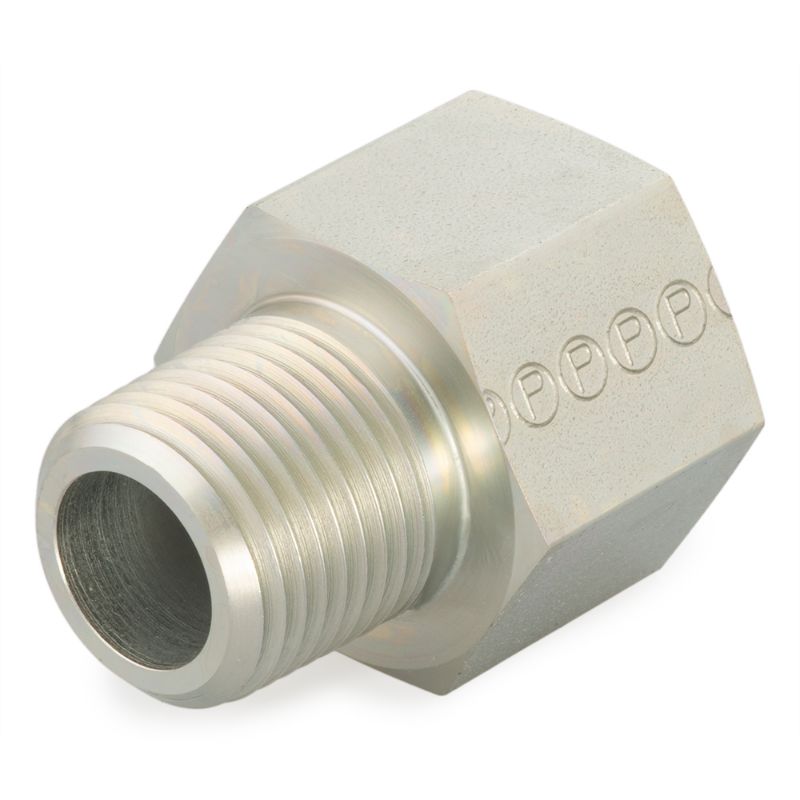

Parker 1/4M14FHG8S - Pipe Fittings and Port Adapters

Name: Parker 1/4M14FHG8S - Pipe Fittings and Port Adapters
SKU: 1/4M14FHG8S
Price: 35.96 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:

2 Limited Stock

Summerville, SC

Partner Available:

11 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1/4M14FHG8S

$35.96/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	6000 psi
Division	Tube Fittings Division	Dimensional Weight	0.19784172661870503 lb
Fitting Type	Pipe Adapter	Connection 4 Thread Size	na
Body Material	Steel	Connection 4 Size	na
Shape	Straight	Length (inch)	na
Body Material	Steel	O-Ring Material	na
Connection Style	NPT/NPTF to Metric Straight Thread	Connection 1 Style	Male NPT/NPTF
Connection 2 Style	Female Metric Straight Thread	Connection 3 Style	na
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	M14X1.5
Connection 1 Thread Size (inch)	1/4-18	Connection 2 Thread Size (inch)	na
Connection 3 Thread Size (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)
