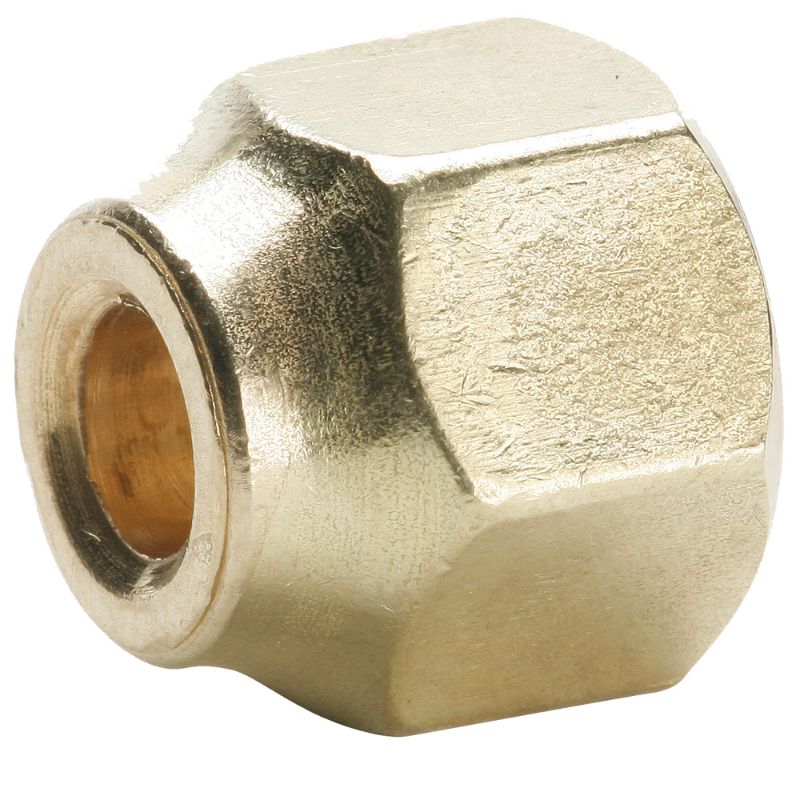

Parker 14FSX-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	56 In Stock

Brand Parker

Part No. 14FSX-4

$3.68/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Technology	Fluid & Gas Handling	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Body Material	Brass	Nut Material	Brass
Minimum Operating Temperature	-65 °F	Division	Fluid System Connectors Division
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	193 bar
Brand	Parker	Connection 1 Type	Flare
Connection 1 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 3 Tube Outside Diameter	NA	Shape	Short Forged Nut
Product Style	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 2 Thread Size	NA
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
