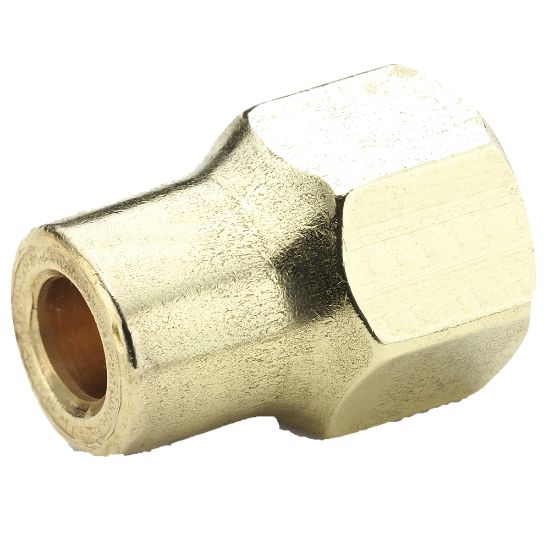

Parker 14FL-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 14FL-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Division	Fluid System Connectors Division	Maximum Operating Temperature	250
Minimum Operating Temperature	-65	Maximum Operating Pressure	2800
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Body Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
O-Ring Material	Fluorocarbon	Specifications Met	SAE J512, SAE J513
Shape	Long Forged Nut	Product Style	Flare
Connection 1 Type	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 1 Thread Size	7/16-20 inch
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	1/4 inch	Connection 2 Tube Outside Diameter	NA
Connection 3 Tube Outside Diameter	NA

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
