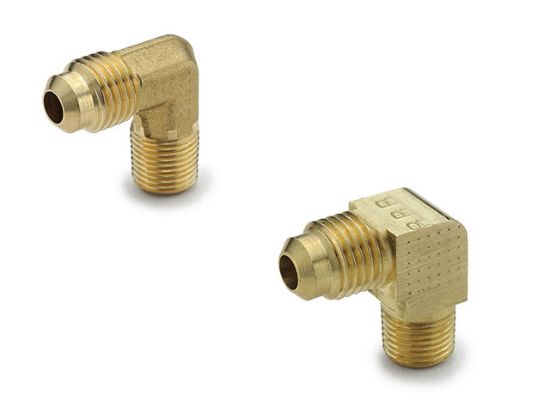

Parker 149F-14-12 - Male Elbow 149F-249F

Parker 45° Flare Brass Male Elbow - Ref. SAE J512 and J513 010202

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 149F-14-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outer Diameter 1	7/8 Inch	UOM	EA
Thread 2	3/4 NPT	Material	Brass
Pkg Qty	1	Thread 1	1-1/4-12 UN/UNF
Material	Brass	Outer Diameter 1 Inch/mm	Inch
Thread 1 Type	UN/UNF	Thread 1	1-1/4-12 UN/UNF
Parker Division	Fluid Systems Connector (Brass Products)	SAE Reference	SAE 010202
Thread 2 Type	NPT	SAE Compliance	J512 and J513
Parker Group	Fluid Connector	Body Shape	Forged
Operating Temperature	-65°F to +250°F	Thread 2	3/4 NPT
Series	45° Flare	Outer Diameter 1	7/8 Inch
Configuration Type	Flare to Male	Configuration Sub-Type	Male Elbow 90°
Inch/Metric	Inch
