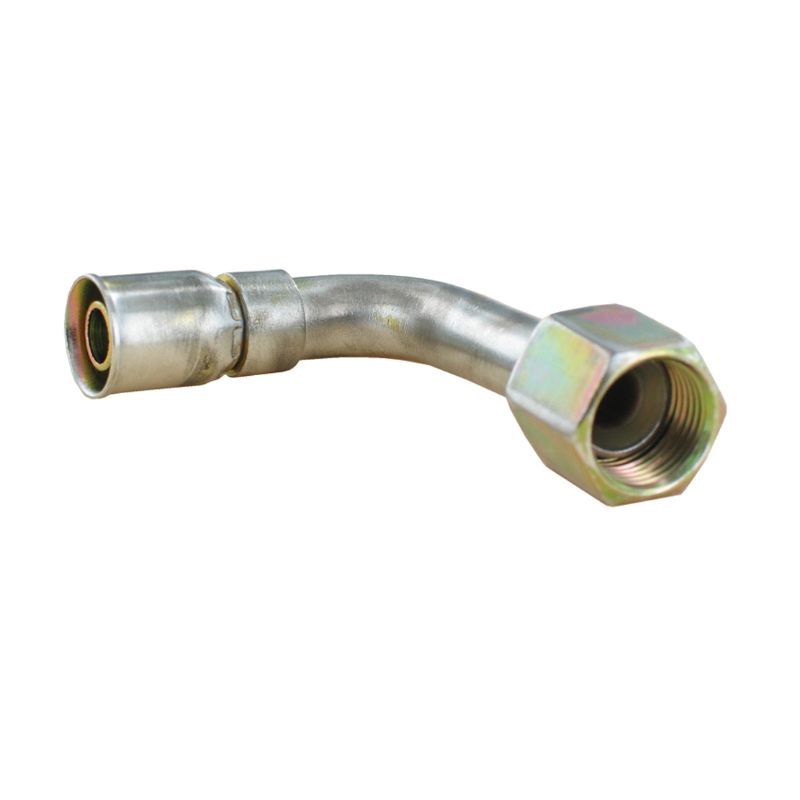

Parker 14191N-12-12 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:	Quote Required
Partner Available:	14 In Stock

Brand Parker

Part No. 14191N-12-12

$61.59

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Maximum Operating Pressure	207 bar
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	n/a
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Body Material	Steel	Application	Medical
Product Series	91N	For Fluid Type	Chemicals
Connection Length	48 mm	Connection 2 Type	Female
Connection 2 Size	1-1/16"-12 inch Thread	Hex Size 1	1-1/4 inch (see drawing legend H)
Dimensional Weight	0.2058 lb	Connection 1 Size	15.9 mm
Shape	Elbow 90° Long Drop	Fitting Length	2.63 inch (see drawing legend A)
Hose I.D. (inch)	0.625"	Connection 2 Size	1-1/16"-12
Product Style	Female JIC 37° - Swivel - 90° Elbow - Long Drop	Length (inch)	2.63"
