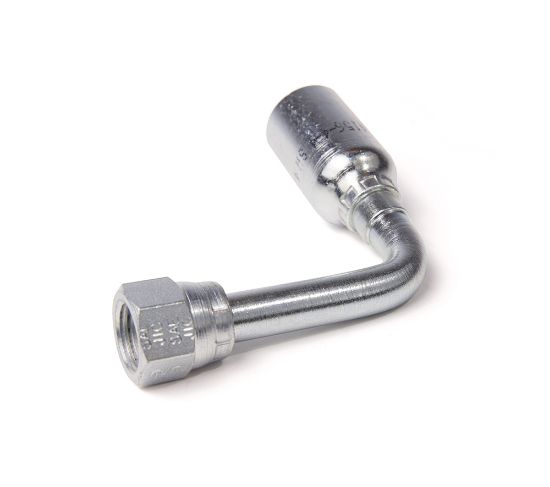

Parker 14156-5-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 14156-5-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	n/a
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Body Material	Steel
Application	Public Works	Industry	Off-road Machinery
For Fluid Type	Water	Maximum Operating Pressure	5000 psi (Dependent on hose)
Hex Size 2	n/a	Connection 1 Size	6.35 mm Hose I.D.
Connection 2 Size	1/2"-20 inch Thread	Connection 2 Type	JIC 37°
Hex Size 1	5/8 inch (see drawing legend J)	Dimensional Weight	0.0563 lb
Connection Length	35 mm Cut-off allowance	Shape	Elbow 90° Long Drop
Fitting Length	59 mm (see drawing legend A)	Shipping Weight	0.128 lb
Materials of Construction	Steel	Hose I.D. (inch)	0.25"
Connection 2 Size	1/2"-20	Length (inch)	2.01"
Product Style	Female JIC 37° - Swivel - 90° Elbow - Long Drop
