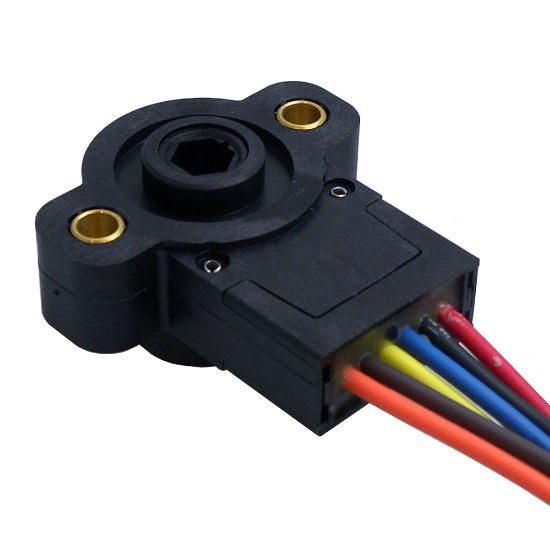

Parker 141453ECD - Rotary Position Sensor - RS

Parker's Rotary Position Sensors are Hall Effect devices with an output voltage dependent upon the angular position of the sensor. They utilize non-contacting technology and are offered in several linear ranges up to 360 degrees of rotation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 141453ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Housing Material	Glass-filled Nylon
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	125 °C
Sensor Type	Rotation	Model Number	RS70
Electrical Connection	DTM04	Mounting Hole Diameter	5.3 mm
Ingress Protection Rating	66	Signal Output	0.5 to 4.5 VDC
Drive Axis Type	Hex Driver	Mounting Option	Hole Spacing 38 mm
Operating Current	24 mA max.	Maximum Output Error	3 %
Maximum Travel Angle	180 °	Power Supply Voltage	5 VDC
Output Current Rating	1 mA (each output)	Return Type	Spring CCW
Number of Outputs	2 redundant	Industry	Construction
Hysteresis	1%	Electrical Output Range	100°
