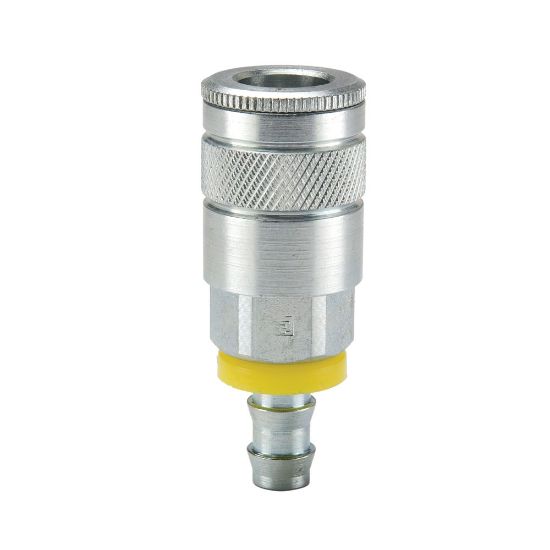

Parker 14-5BP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Name: Parker 14-5BP - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series
SKU: 14-5BP
Price: 51.99 USD
Availability: InStock

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

7 In Stock

North Chesterfield, VA

Partner Available:

167 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 14-5BP

$51.99/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Hex Size	na inch
Product Type	Manual Connect	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Application	Pneumatic
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Interchange Type	Tru-Flate design	Valve Type	Tubular
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Body Material	Steel	Hose I.D. (inch)	3/8
Body Size (inch)	3/8	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
