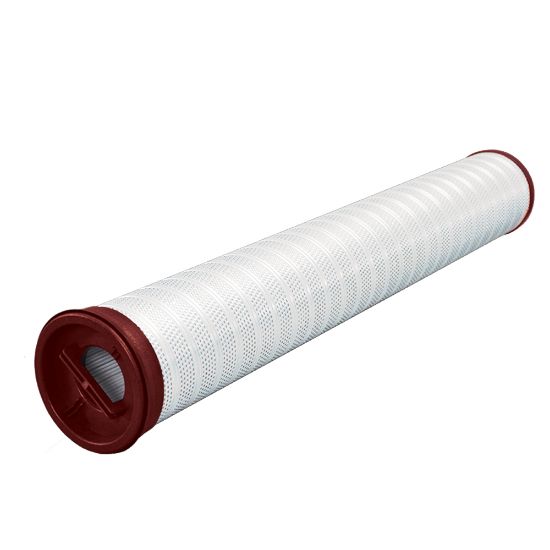

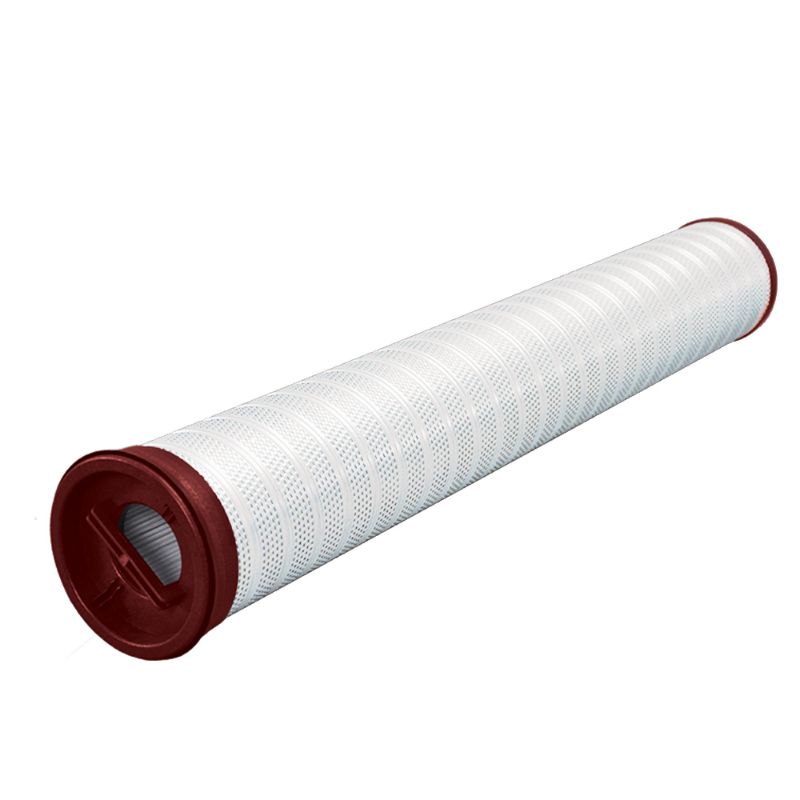

Parker 13948 - XTREAMPURE® XP Liquid Filter Cartridge

XtreamPure® Series XP high flow rate filter cartridge for contaminant removal used in a variety of liquid filtration applications. Several styles to handle any temperature, compatibility & cleanliness.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 13948

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	PECO
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Technology	Filtration	Industry	Oil and Gas
Flow Direction	Inside-to-Outside	Changeout Pressure Differential	35 psid
Quantity per Box	1	Nominal Inside Diameter	3 inch
Maximum Pressure Differential	50	Nominal Outside Diameter	6.3 inch
pH Range	3-9	Micron Rating	10
Maximum Operating Temperature	240 F	Maximum Pressure Differential	50 psid
Core Material	N/A	Seal Material	Viton
Nominal Inside Diameter	3"	Filter Material	Glass with Acrylic
Cartridge Length	60.5"	End Cap Material	Nylon
End Cap Configuration	SOE - Open top w/ handle outer chevron-style seal, closed bottom	Nominal Outside Diameter	6.3"
Body Material	Tin-Plated Steel	Flow Direction	Inside-to-Outside
Product Series	XP-G1	Filter Construction	Pleated
Changeout Pressure Differential	35 PSID	Model Number	ELMT XP-G1-6100V
