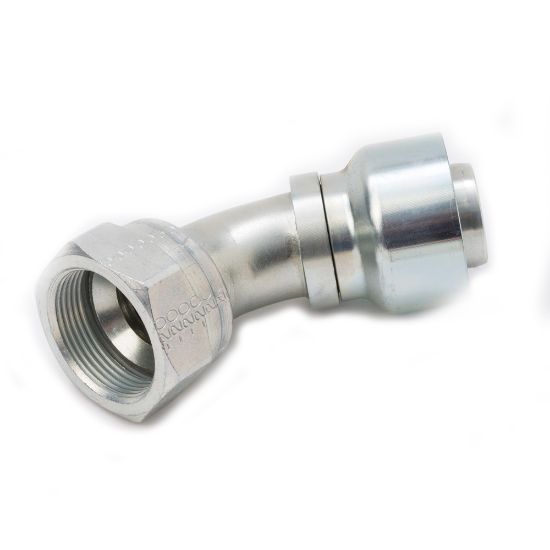

Parker 13793N-12-12 - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 13793N-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Industry	Transportation	Technology	Fluid & Gas Handling
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Product Type	Hose Fittings	Configuration	Hose to Port
For Fluid Type	Hydraulic Fluids	Connection 1 Type	Hose
Body Material	Steel	Application	Sampling
Product Series	93N	Maximum Operating Pressure	1500 psi (Dependent on hose)
Connection 2 Size	1-1/16"-12 inch Thread	Connection 2 Type	Swivel
Hex Size	1-1/4 inch (see drawing legend J)	Connection 1 Size	19 mm
Fitting Length	3.37 inch (see drawing legend A)	Shape	Elbow 45° Short Drop
Connection Length	57 mm	Drop Length	20 mm
Hose I.D. (inch)	0.75"	Connection 2 Size	1-1/16"-12
Product Style	Female JIC 37° Swivel	Length (inch)	3.37"
