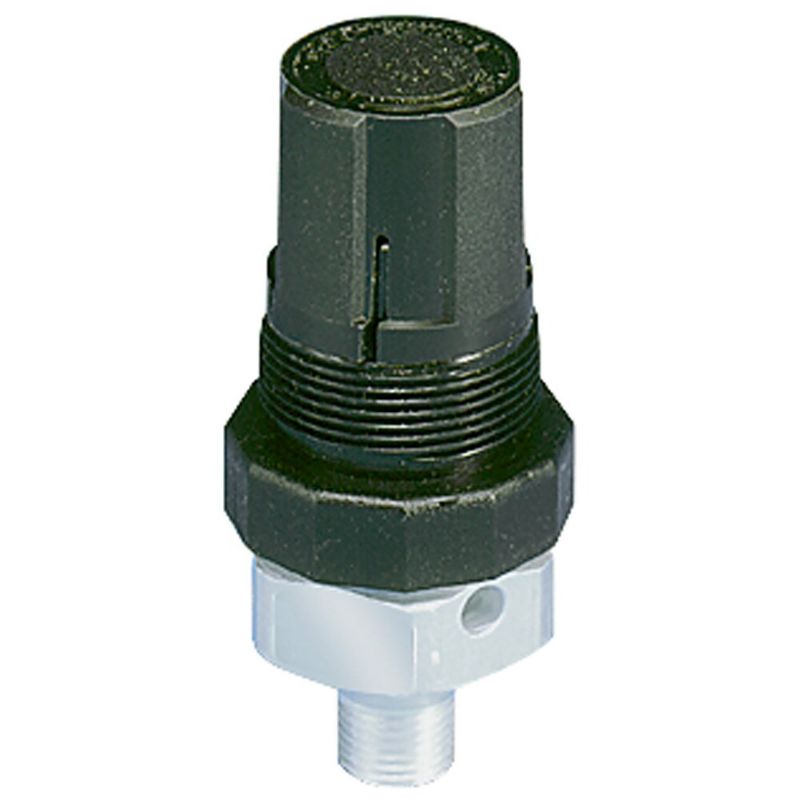

Parker 130-02AP - Relief Valves - 130 Series

130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 130-02AP

$46.30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Port Size	1/4	Body Material	Aluminum
Port Type	NPT (Male)│BSPP¦(Male)	Adjustment Mechanism	Polypropylene Push-Pull Locking Knob
Operating Temperature	40 to 120	Pressure Relief Setting	0 to 100
Adjustment Screw Material	Steel, Zinc-plated (adjusting screw and spring)	Maximum Inlet Pressure Rating	300
Available Accessories	With panel mount nut	Pressure Relief Setting (psig)	0-25
