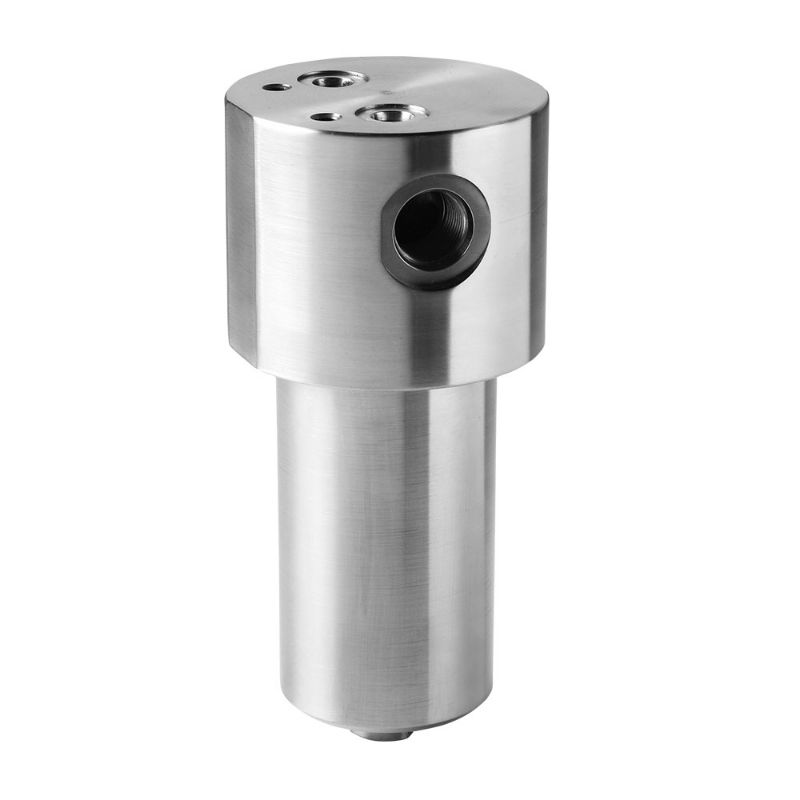

Parker 12SMP110QHV4L35N821 - High Pressure Inline Filter 12S Series

Parker's 12S High Pressure Stainless Steel Inline Filters are ideal for heavy duty applications in aggressive environments. Allowable operating pressure of 20,000 psi/1,380 bar and capable of flows up to 25 GPM/95 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12SMP110QHV4L35N821

$4,143.74/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Hydraulic Filter
Collapse Pressure	138 bar	Filter Element Type	Cartridge
Maximum Operating Temperature	135.0 °C	For Fluid Type	Mineral and Petroleum Based Fluid
Series or Model Replaced	12SMP110QHV4L35N611, 12SMP110QHV4L35N81, 12SMP110QHV4L35N811, 12SMP110QHV4L35S121, 12SMP110QHV5T35N811, 12SMP110QHVNN611	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	689 bar	Mounting Style	Inline
Housing Material	Stainless Steel 316L	Weight	14 lbs (6.35 kg)
Compatible Element	403399	Seal Material	Fluorocarbon
Filter Element	10 micron microglass	Flow Rate	10 gpm (37.8 lpm)
Indicator Type	Visual manual reset, 50 psid	Options	No bypass with 1/4" SAE-4 drain port
Port Connection Type	1/2" nominal NPTF	Bypass Valve Pressure Rating	50 psid (3.4 bar)
