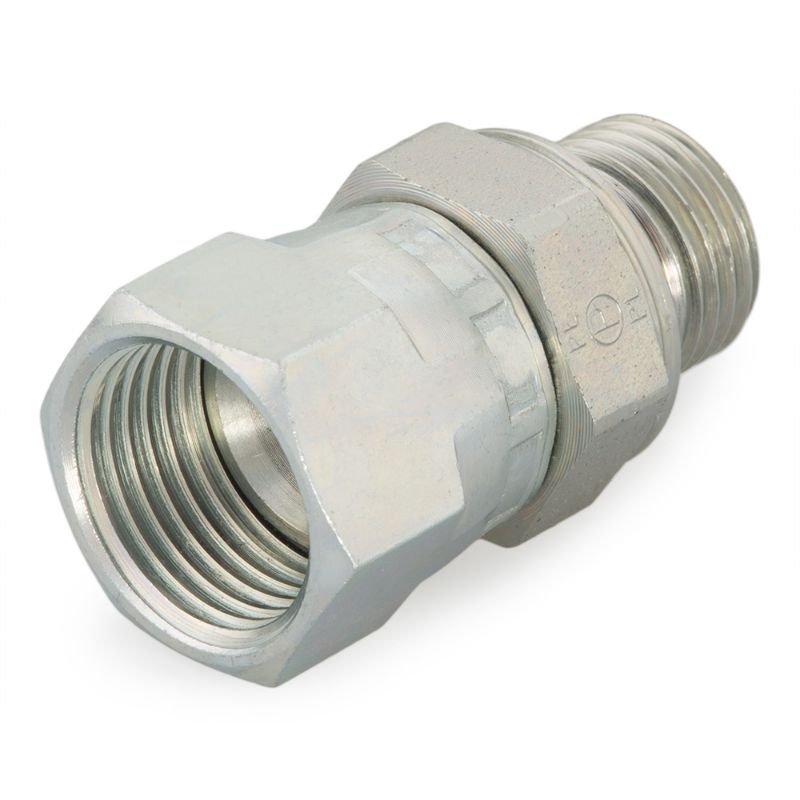

Parker 12M27F687OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12M27F687OMXS

$109.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	na	Connection 3 Thread Size	na
Shape	Straight	Specifications Met	SAE J514 and ISO 8434-2
Connection 2 Tube Outside Diameter	na	Connection 3 Size	na
Connection 2 Thread Size	na	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	18, 20 mm	Connection 1 Size	Female 37° Flare Swivel
Body Material	Steel	Connection 2 Size	Male ISO 6149
Connection 3 Tube Outside Diameter	na	Connection Type	37° Flare
Division	Tube Fittings Division	O-Ring Material	90 Durometer Nitrile

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
