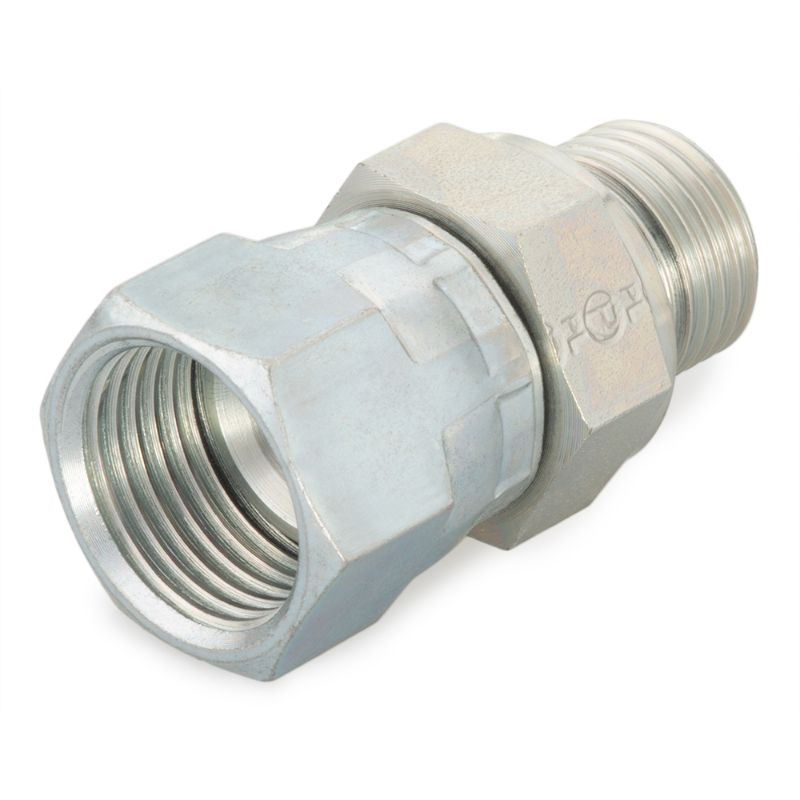

Parker 12M22F682EDMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12M22F682EDMXS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Shape	Straight	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Connection 3 Thread Size	na	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Female 37° Flare Swivel	Connection 3 Size	na
Connection 2 Thread Size	M22x1.5 mm	Connection 2 Size	Male Metric EOlastic Seal
Connection 1 Tube Outside Diameter	3/4 inch	Connection Type	Tube to Metric-ED
