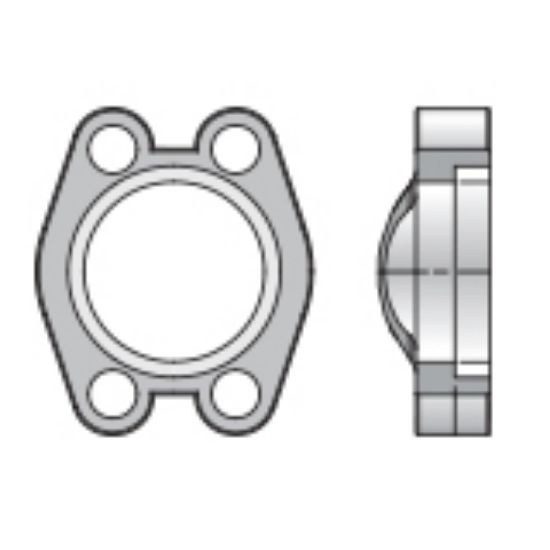

Parker 12FCCT1SX - 4-Bolt Hydraulic Flanges and Components

Parker's 4-bolt hydraulic flanges and components are proven leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12FCCT1SX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	5000 psi
Includes	n/a	Flange Size	Code 61
O-Ring Material	n/a	Specifications Met	ISO
Body Material	Steel	Flange	Code 61
Flange Size (inch)	3/4	Face Style	na
Connection 1 Style	na	Connection Pipe O.D. (inch)	na
Connection Tube O.D. (inch)	na	Connection Thread Size (inch)	na
Connection Style	Captive Flange Clamp - Tapped Holes

Product resources

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
