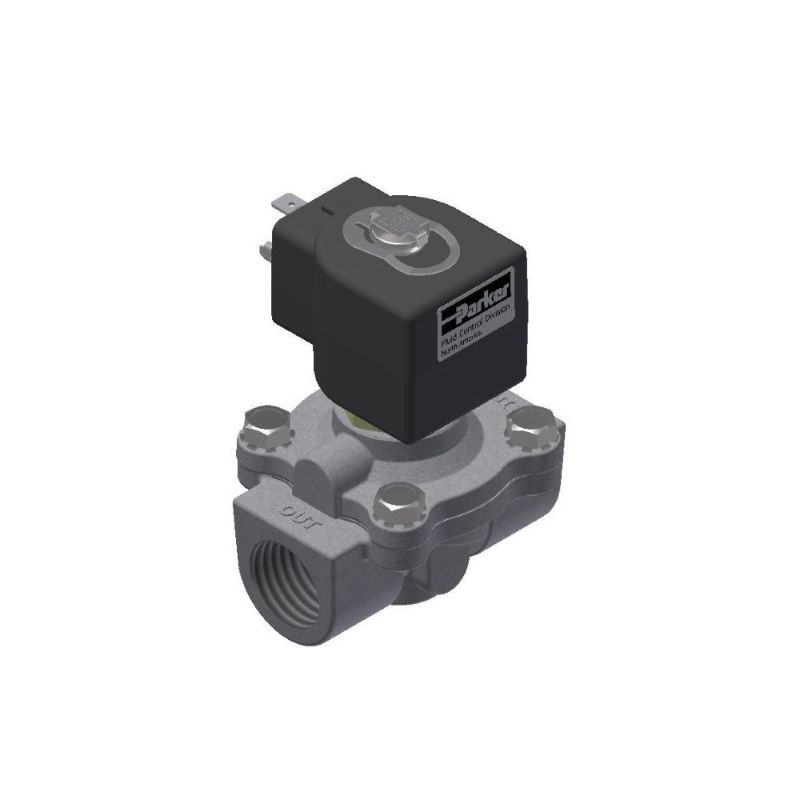

Parker 12F23C6348A3FPH80 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12F23C6348A3FPH80

$1,063.30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless Steel
Division	Fluid Control Division	Media	General Purpose
Function	Normally Closed	Coil Type	DIN 43650A / ISO 4400
Port Size	3/4 inch	Port Type	NPT
Installation	IOM 7321	Orifice Size	3/4 inch
Input Voltage	24.0 VDC	Seal Material	EPDM
Actuation Type	Direct Lift	Insulation Class	Class F
Power Consumption	11.5 W	Specifications Met	UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC
Valve Configuration	2 Way	Main Flow Coefficient	5.0 Cv
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	150.0 °F
Preventive Maintenance Kit	12F23C6348A3FR	Maximum Ambient Temperature	77.0 °F
Maximum Pressure Differential	40 (N/A Light Oil) psi	Minimum Pressure Differential	0.0 psi
Media	General Purpose	Function	Normally Closed
Coil Type	DIN 43650A / ISO 4400	Port Size	3/4
Port Type	NPT	Installation	IOM 7321
Orifice Size	3/4	Body Material	316 Stainless Steel
Input Voltage	24.0	Seal Material	EPDM
Actuation Type	Direct Lift	Insulation Class	Class F
Power Consumption	11.5	Specifications Met	UL, CSA Recognized General Purpose Valve; CE - Low Voltage, EMC
Valve Configuration	2 Way	Main Flow Coefficient	5.0
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	150.0
Preventive Maintenance Kit	12F23C6348A3FR	Maximum Ambient Temperature	77.0
Maximum Pressure Differential	40 (N/A Light Oil)	Minimum Pressure Differential	0.0

Product resources

Literature and Reference Materials

Tube Seal (PDF)
