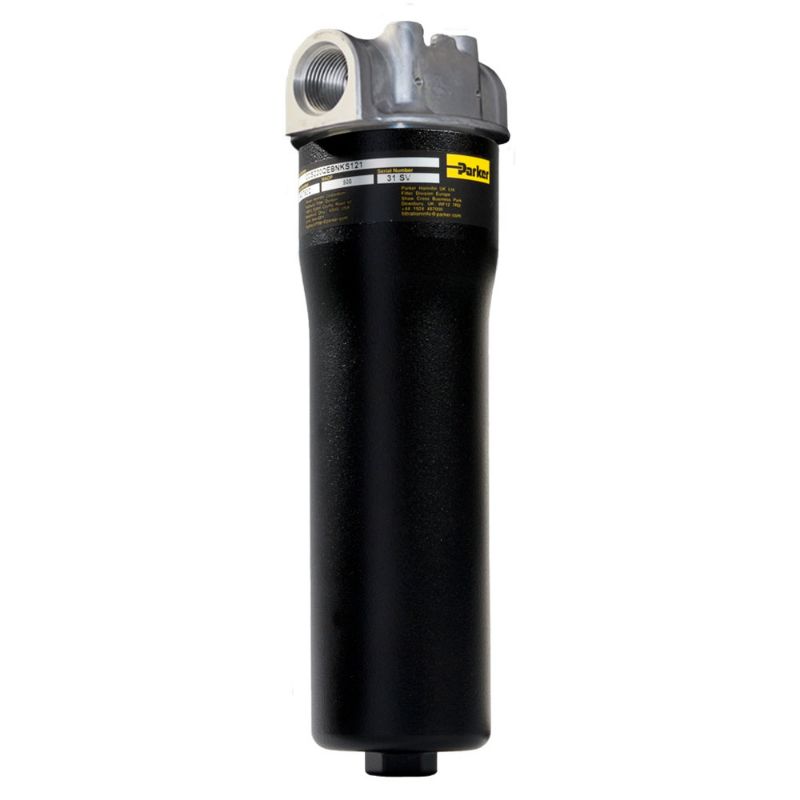

Parker 12CS210QEBNKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12CS210QEBNKS121

$208.23/each

Products specifications

Attribute name	Attribute value
UOM	EA	Indicator Pressure Setting	3.5 bar
Maximum Operating Temperature	225.0 °F	Options	No options
Indicator Type	No indicator	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Coreless	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	500 psi	Mounting Style	Inline
Seal Material	Nitrile	Compatible Element	940763Q
Port Type	SAE-12 integral threads	Weight	3 lbs (1.4 kg)
Product Style	Hydraulic Filter	Micron Rating	10Q Microglass
Flow Rate	95.0 L/min	Housing Material	Bowl - wrought aluminum; Head - cast aluminum
Product Type	Hydraulic Filter	Bypass Valve Pressure Rating	3.5 bar
Seal Material	Nitrile	Options	No options
Indicator Type	No indicator	Port Connection Type	SAE-12 integral threads
Flow Rate	25 gpm (95 lpm)	Micron Rating	10Q Microglass
Bypass Valve Pressure Rating	50 psid (3.5 bar)

Product resources

Literature and Reference Materials
