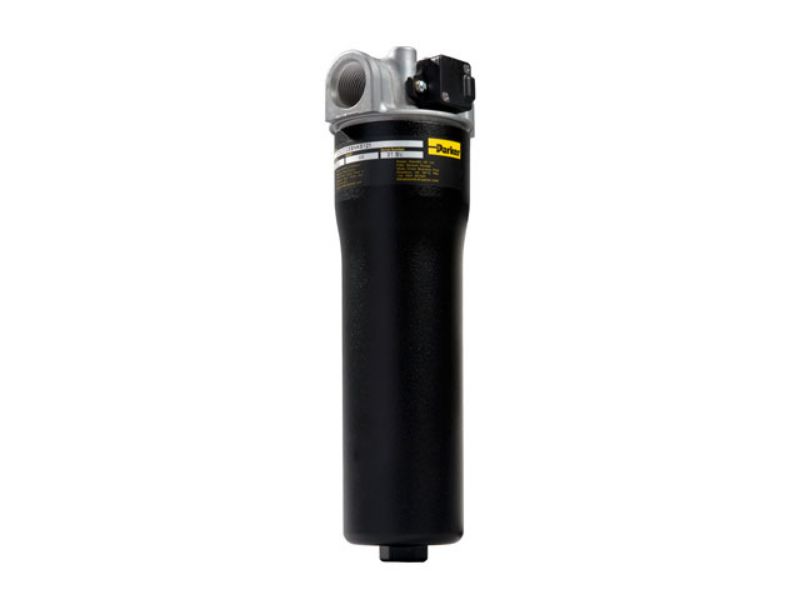

Parker 12CS205QEBNGS121 - 12CS Series Medium Pressure Filter

12CS Series Hydraulic and Lube Oil Medium Pressure Filter

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12CS205QEBNGS121

$181.76/each

Products specifications

Attribute name	Attribute value
UOM	EA	Element Length	Double
Seals	Nitrile	UOM	EA
Options	No Option	Replacement Element	940764Q
Bypass	25 PSI (1.7 bar)	Operating Temperature	-40F to 225F (-40C to 107C)
Pkg Qty	1	Max Pressure - Fatigue MAOP	400 PSI (27.6 Bar)
Nominal Flow Rating	15 GPM (57 LPM)	Port	12 SAE
Indicator Type	No Indicator	Max Pressure - Non-Fatigue MAOP	500 PSI (34.5 bar)
Nominal Filter Rating	5 micron	Element Length	Double
Operating Temperature	-40F to 225F (-40C to 107C)	Max Pressure - Non-Fatigue MAOP	500 PSI (34.5 bar)
Indicator Type	No Indicator	Filter Media Code	05QE
Max Pressure - Fatigue MAOP	400 PSI (27.6 bar)	Nominal Filter Micron Rating	5 micron
Parker Group	Filtration	Series	12CS
Seals	Nitrile	Options	No Option
Bypass	25 PSI (1.7 bar)	Filter Media Type	Ecoglass III
Parker Division	Hydraulic Filter	Port Type	SAE
Filter Type	Medium Pressure Filter	Nominal Flow Rating	15 GPM (57 LPM)
Port	12 SAE

Product resources

12CS/50CS Series (PDF)
