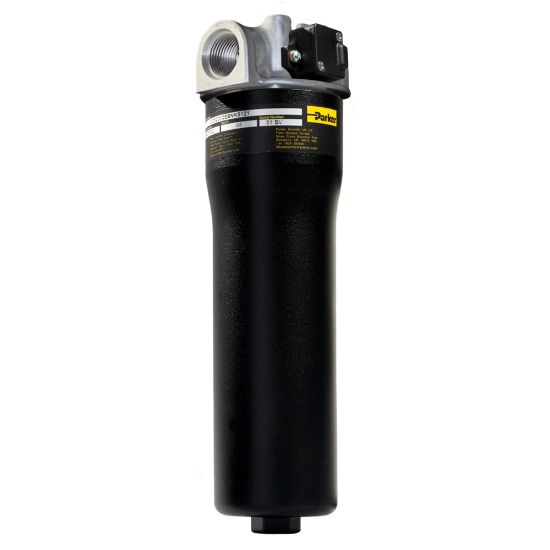

Parker 12CS205QEBELKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12CS205QEBELKS121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Weight	3 lbs (1.4 kg)	Options	No options
Flow Rate	25.0 Gal/min	Port Type	SAE-12 integral threads
Indicator Type	Electrical with 12 inch flying leads, left	Pressure Rating	34.5 bar
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Compatible Element	940764Q
Filter Element Type	Coreless	Indicator Pressure Setting	50.0 psid
Bypass Valve Pressure Rating	3.5 bar	Maximum Operating Temperature	107.0 °C
Micron Rating	05Q Microglass	Product Style	Hydraulic Filter
Mounting Style	Inline	Seal Material	Nitrile
Options	No options	Indicator Type	Electrical with 12 inch flying leads, left
Port Connection Type	SAE-12 integral threads	Flow Rate	25 gpm (95 lpm)
Micron Rating	05Q Microglass	Bypass Valve Pressure Rating	50 psid (3.5 bar)
