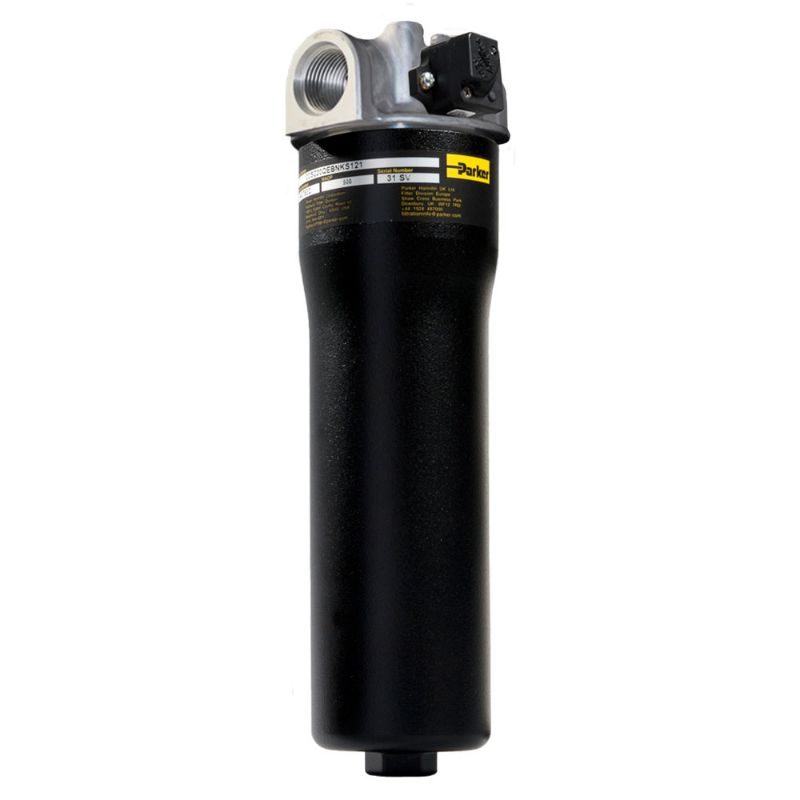

Parker 12CS202QEBMLKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12CS202QEBMLKS121

$368.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	225.0 °F	Indicator Pressure Setting	3.5 bar
Filter Element Type	Coreless	Options	No options
Indicator Type	Visual with push to test, left	Mounting Style	Inline
Pressure Rating	34.5 bar	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Flow Rate	25.0 Gal/min	Port Type	SAE-12 integral threads
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Compatible Element	940765Q
Weight	3 lbs (1.4 kg)	Seal Material	Nitrile
Micron Rating	02Q Microglass	Product Style	Hydraulic Filter
Bypass Valve Pressure Rating	3.5 bar	Product Type	Hydraulic Filter
Seal Material	Nitrile	Options	No options
Indicator Type	Visual with push to test, left	Port Connection Type	SAE-12 integral threads
Flow Rate	25 gpm (95 lpm)	Micron Rating	02Q Microglass
Bypass Valve Pressure Rating	50 psid (3.5 bar)
