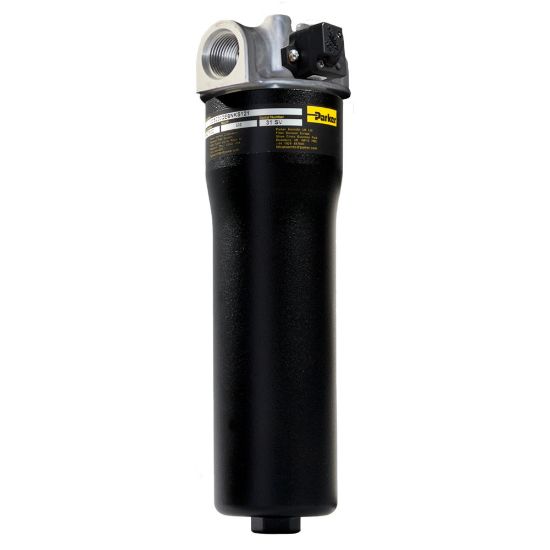

Parker 12CS202QEBMKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12CS202QEBMKS121

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Weight	3 lbs (1.4 kg)	Options	No options
Flow Rate	25.0 Gal/min	Port Type	SAE-12 integral threads
Indicator Type	Visual with push to test, right	Pressure Rating	34.5 bar
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Compatible Element	940765Q
Filter Element Type	Coreless	Indicator Pressure Setting	3.5 bar
Bypass Valve Pressure Rating	50.0 psid	Maximum Operating Temperature	225.0 °F
Micron Rating	02Q Microglass	Product Style	Hydraulic Filter
Mounting Style	Inline	Seal Material	Nitrile
Options	No options	Indicator Type	Visual with push to test, right
Port Connection Type	SAE-12 integral threads	Flow Rate	25 gpm (95 lpm)
Micron Rating	02Q Microglass	Bypass Valve Pressure Rating	50 psid (3.5 bar)
