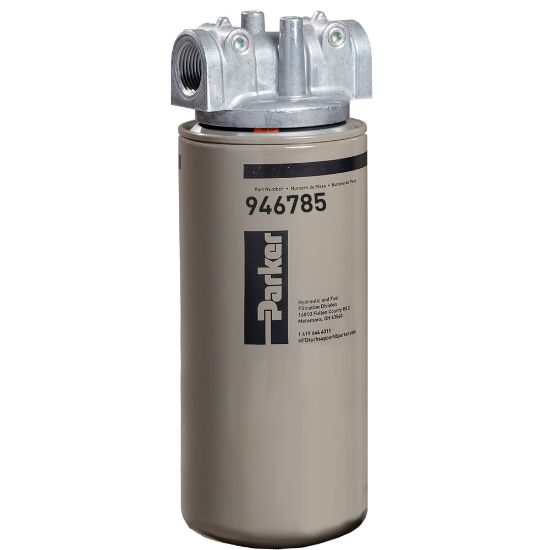

Parker 12AT210CBPXN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12AT210CBPXN12H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	None
Bypass Valve Pressure Rating	No Bypass	Port Type	3/4" NPT ports
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Indicator Type	Sold separately
Pressure Rating	150	Housing Material	Low Carbon Steel
Filter Element Type	10 micron cellulose	Indicator Pressure Setting	No Bypass
Maximum Operating Temperature	225	Weight	2.7
Flow Rate	94	Compatible Element	946785
Seal Material	Nitrile	Bypass Valve (psi)	No Bypass
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron cellulose
Indicator Type	Sold separately	Port Connection Type	3/4" NPT ports
Flow Rate (gpm)	25

Product resources

Literature and Reference Materials
