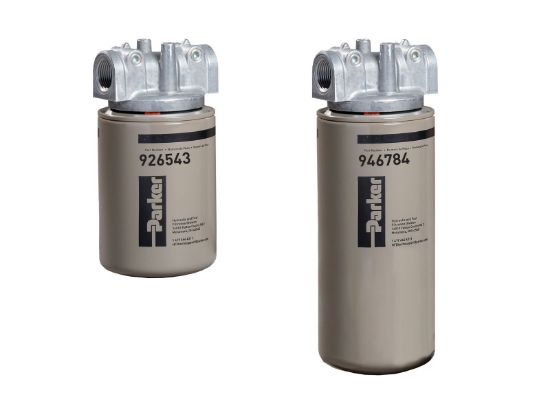

Parker 12AT10CN15MMH - 12AT Series Low Pressure Filter

12AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12AT10CN15MMH

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Port	12 SAE	Operating Temperature	-40F to 225F (-40C to 107C)
Element Length	Single	Nominal Filter Rating	10 micron
Nominal Flow Rating	12 GPM (45 LPM)	Seals	Nitrile
Indicator Type	No Indicator	Bypass	15 PSI (1.0 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Replacement Element	921999	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	12AT
Operating Temperature	-40F to 225F (-40C to 107C)	Port	12 SAE
Filter Media Code	10C	Filter Type	Low Pressure Filter
Nominal Filter Micron Rating	10 micron	Filter Media Type	Cellulose
Element Length	Single	Port Type	SAE
Indicator Type	No Indicator	Bypass	15 PSI (1.0 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Seals	Nitrile
Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)	Nominal Flow Rating	12 GPM (45 LPM)

Product resources

12AT/50AT/80AT/80UT Series (PDF)
