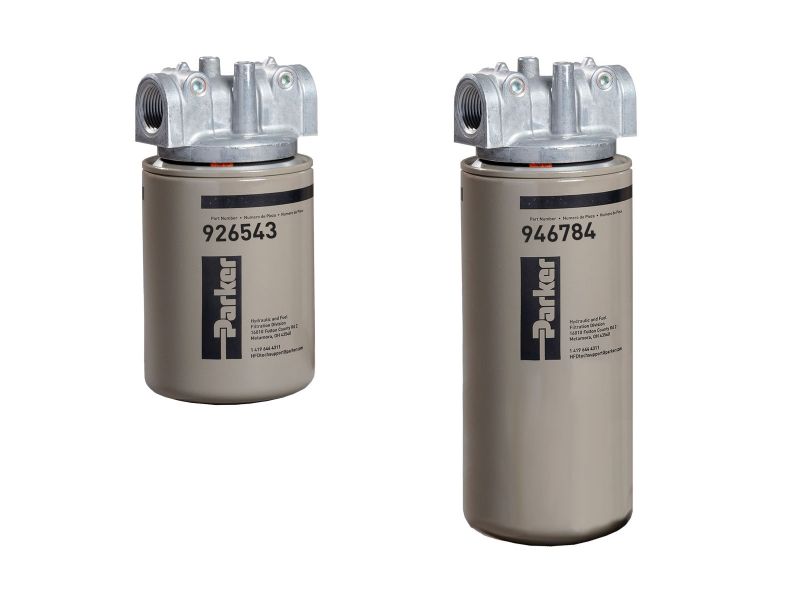

Parker 12AT10CN15BBH - 12AT Series Low Pressure Filter

12AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12AT10CN15BBH

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Port	3/4 NPT
Operating Temperature	-40F to 225F (-40C to 107C)	Element Length	Single
Nominal Filter Rating	10 micron	Nominal Flow Rating	12 GPM (45 LPM)
Seals	Nitrile	Indicator Type	No Indicator
Bypass	15 PSI (1.0 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)	Replacement Element	921999
Port	3/4 NPT	Parker Group	Filtration
Parker Division	Hydraulic Filter	Series	12AT
Operating Temperature	-40F to 225F (-40C to 107C)	Filter Media Code	10C
Filter Type	Low Pressure Filter	Nominal Filter Micron Rating	10 micron
Filter Media Type	Cellulose	Element Length	Single
Port Type	NPT	Indicator Type	No Indicator
Bypass	15 PSI (1.0 bar)	Gauge Port Location	Inlet And Outlet - Both Sides
Seals	Nitrile	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Nominal Flow Rating	12 GPM (45 LPM)

Product resources

12AT/50AT/80AT/80UT Series (PDF)
