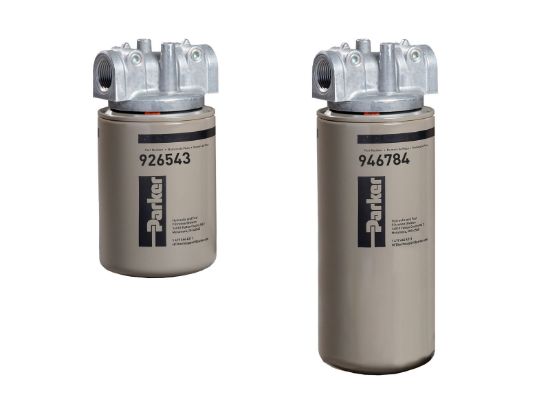

Parker 12AT10BN3MMH - 12AT Series Low Pressure Filter

12AT Series Hydraulic and Lube Oil Low Pressure Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12AT10BN3MMH

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nominal Flow Rating	12 GPM (45 LPM)	Bypass	3 PSI (0.2 bar)
Operating Temperature	-40F to 225F (-40C to 107C)	Pkg Qty	1
Indicator Type	No Indicator	Nominal Filter Rating	10 micron
Gauge Port Location	Inlet And Outlet - Both Sides	Replacement Element	928763
UOM	EA	Max Pressure - Non-Fatigue MAOP	150 psi (10.3 bar)
Port	12 SAE	Element Length	Single
Seals	Nitrile	Series	12AT
Element Length	Single	Nominal Filter Micron Rating	10 micron
Indicator Type	No Indicator	Max Pressure - Non-Fatigue MAOP	150 PSI (10.3 bar)
Gauge Port Location	Inlet And Outlet - Both Sides	Port Type	SAE
Seals	Nitrile	Filter Media Code	10B
Port	12 SAE	Bypass	3 PSI (0.2 bar)
Nominal Flow Rating	12 GPM (45 LPM)	Parker Division	Hydraulic Filter
Filter Type	Low Pressure Filter	Parker Group	Filtration
Operating Temperature	-40F to 225F (-40C to 107C)	Filter Media Type	Microglass

Product resources

12AT/50AT/80AT/80UT Series (PDF)
