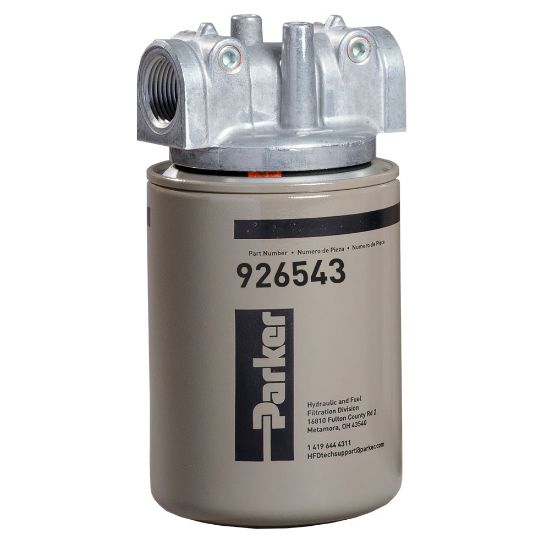

Parker 12AT103CBPPN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12AT103CBPPN12H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	107
Weight	0.73	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Flow Rate	8.5	Port Type	3/4" NPT ports
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Indicator Type	Sold separately
Pressure Rating	150	Housing Material	Low Carbon Steel
Compatible Element	926543	Filter Element Type	3 micron cellulose
Indicator Pressure Setting	2.5	Bypass Valve Pressure Rating	3
Seal Material	Nitrile	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Filter Element	3 micron cellulose	Flow Rate (gpm)	2.25
Indicator Type	Sold separately	Bypass Valve (psi)	3
Port Connection Type	3/4" NPT ports
