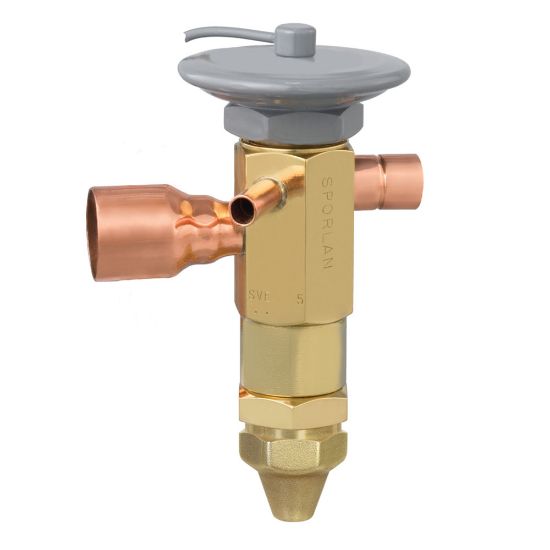

Parker 128665 - Thermostatic Expansion Valve - Sporlan - Type S

Sporlan Type S TEV's are designed for use on Air Conditioning and Refrigeration units. They regulate refrigerant flow by maintaining a nearly constant superheat at the evaporator outlet. The R/ER Series valves are functional replacements.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 128665

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Industrial Process Filtration Division
Technology	Filtration	Flow Direction	Outside-to-inside
Quantity per Box	20	Product Series	HFT
Filter Construction	Wound String	Nominal Inside Diameter	1"
Maximum Pressure Differential	60 PSID	Changeout Pressure Differential	30 PSID
Pressure Drop	100 psi (nom)	Maximum Operating Pressure	450 psi
Refrigerant Type	R-404A, R-507A	Strainer Type	12 Mesh Permanent
Outlet Connection Size	5/8" ODF inch	Equalizer Connection Type	Externally Equalized
Thermostatic Charge	Z	Liquid Temperature	37.8 °C (nom)
Application	Low Temp Refrigeration	Inlet Connection Size	3/8" ODF inch
Division	Fluid and Climate Controls Europe	Product Type	S- Valve
Filter Element Type	83	Capillary Tube Length	1.524 m
Nominal Capacity	3 ton	Model Number	SSSE-3-Z 3X5 ODF 5'
Evaporator Temperature	40 °F (nom)	Core Material	Tin-Plated Steel
Micron Rating	50	End Cap Material	N/A
End Cap Configuration	DOE - Double Open End	Industry	Oil & Gas and Industrial
Packaging	Standard	Seal Material	N/A
Cartridge Length	30.1875"	Core Cover Material	N/A
Nominal Outside Diameter	2.4375"	Maximum Operating Temperature	250 F
Filter Material	Rayon (FDA)	Model Number	ELMT E11R30
Capillary Length (inch)	5'	Thermostatic Charge	Z
Inlet Connection Size (inch)	3/8" ODF	Nominal Capacity (ton)	3 ton
Refrigerant Type	R-404A	Capillary Length (m)	1.524 m
Application	Low Temp Refrigeration	Equalizer Method	Externally Equalized
Outlet Connection Size (inch)	5/8" ODF
