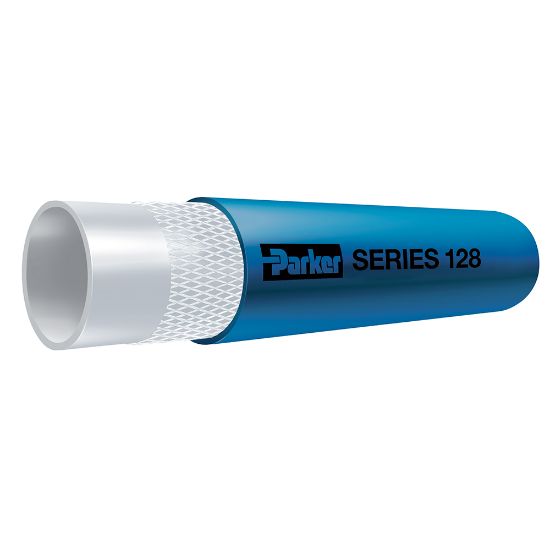

Parker 128-16006200 - NEXBRAID® PVC Potable Water By-Pass Hose, Series 128

Nexbraid PVC Potable Water By-Pass Hose is designed as a temporary conduit for water supply during construction, maintenance and repair of pipe to 150°F and 250 psi, Series 128

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 128-16006200

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Specifications Met	FDA
Media	Water (Potable Water)	Package Type	Coil
Maximum Operating Temperature	150	Inside Diameter	1
Cover Color	Blue	Application	PVC Hose
Cover Material	PVC	Cover Structure	Smooth
Minimum Bend Radius	n/a	Hose Reinforcement Material	2 Plies of Textile
Weight	0.77	Outside Diameter	1.375
Length per Package	200	Hose Inner Tube Material	Clear/Blue Tint
Maximum Operating Pressure	200 psi at 68°F	Minimum Operating Temperature	-13
Hose I.D. (inch)	1	Maximum Working Pressure (psi)	200 at 68F
